Operating manual.
CNC 8060
CNC 8065
14.
GRAPHIC ENVIRONMENT (LATHE MODEL)
Zoom
·256·
(REF: 1807)
14.3 Zoom
The zoom option may be used to enlarge or reduce the whole graph shown or part of it. This
option is not available in the "Combined" type of graphics.
After selecting the "Zoom" option, a zoom frame will appear over the graphics. This frame
may be enlarged, reduced and moved around over the graphics already displayed in order
to select a particular portion of it to zoom into or out of.
A window is displayed on the graphics at the lower right-hand side of the screen. This window
indicates the graphic area selected with the zoom.
Zoom "Initial"
This option restores the size of the display are set via program or using the "Dimensions"
option.
Zoom "Automatic"
The CNC uses the zoom that it considers best according to the movements programmed.
Zoom "Previous"
This option displays up to two zooms defined earlier. After the second one, it shows again
the one defined last.
Zoom "Edit"
It is used to manually edit the zoom values. It is edited in the dialog area of the graphic window
that shows the dimensions of the zoom frame

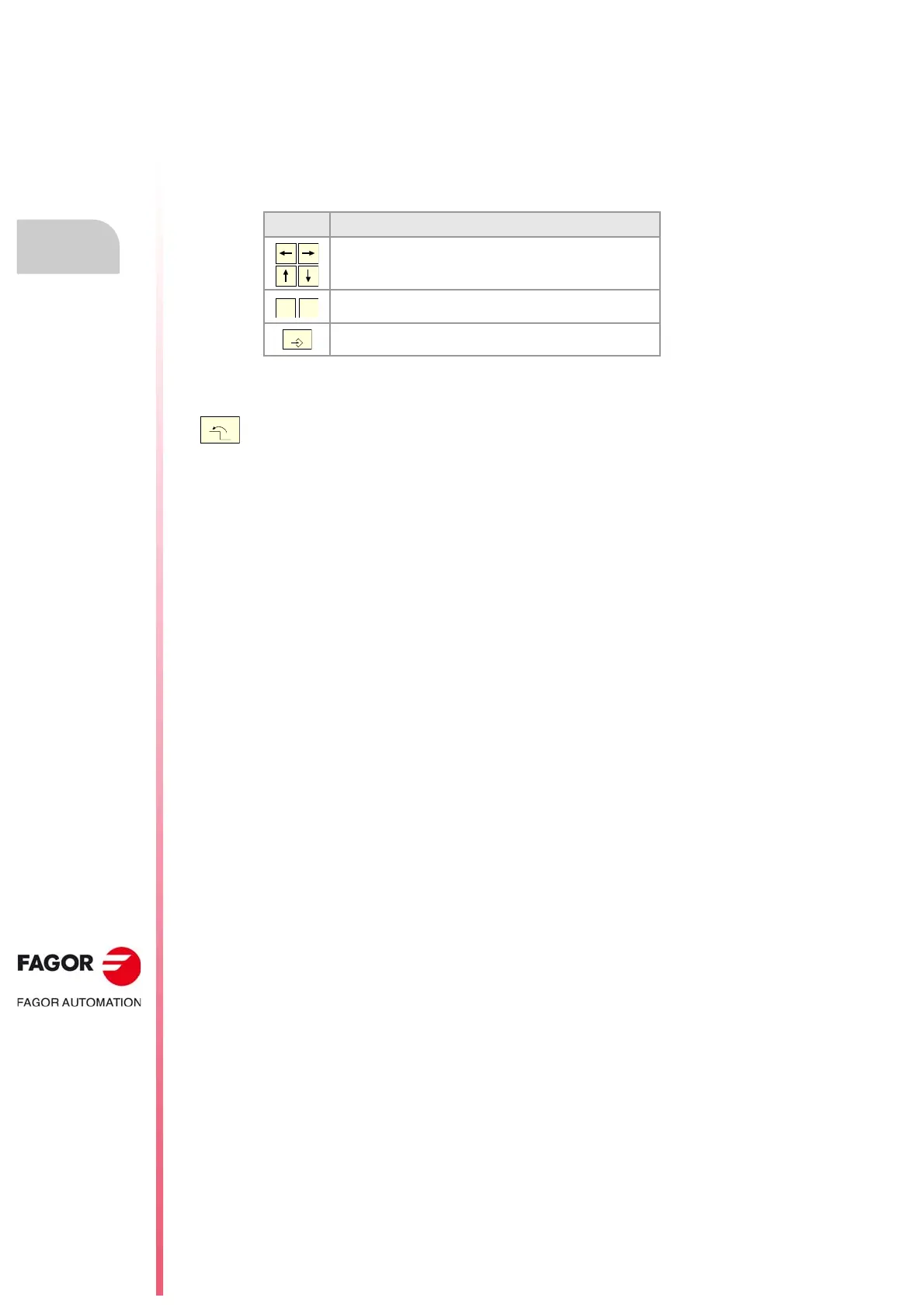

Key. Meaning.
To move the zoom frame around.
To change the size of the zoom frame.
To validate and display the selected zoom area.
When selecting this option, the softkey menu shows the available zoom options. To return
to the main menu, press the [BACK] key.
