21.2.2 Compensation table
There are two types of compensation table:
• Leadscrew error compensation, that is accessed with the axis machine parameter
"LSCRWDATA" when the compensation is active.
• Cross compensation, which is accessed with the general machine parameter
"CROSSCOMP".
These compensation tables have the following structure:

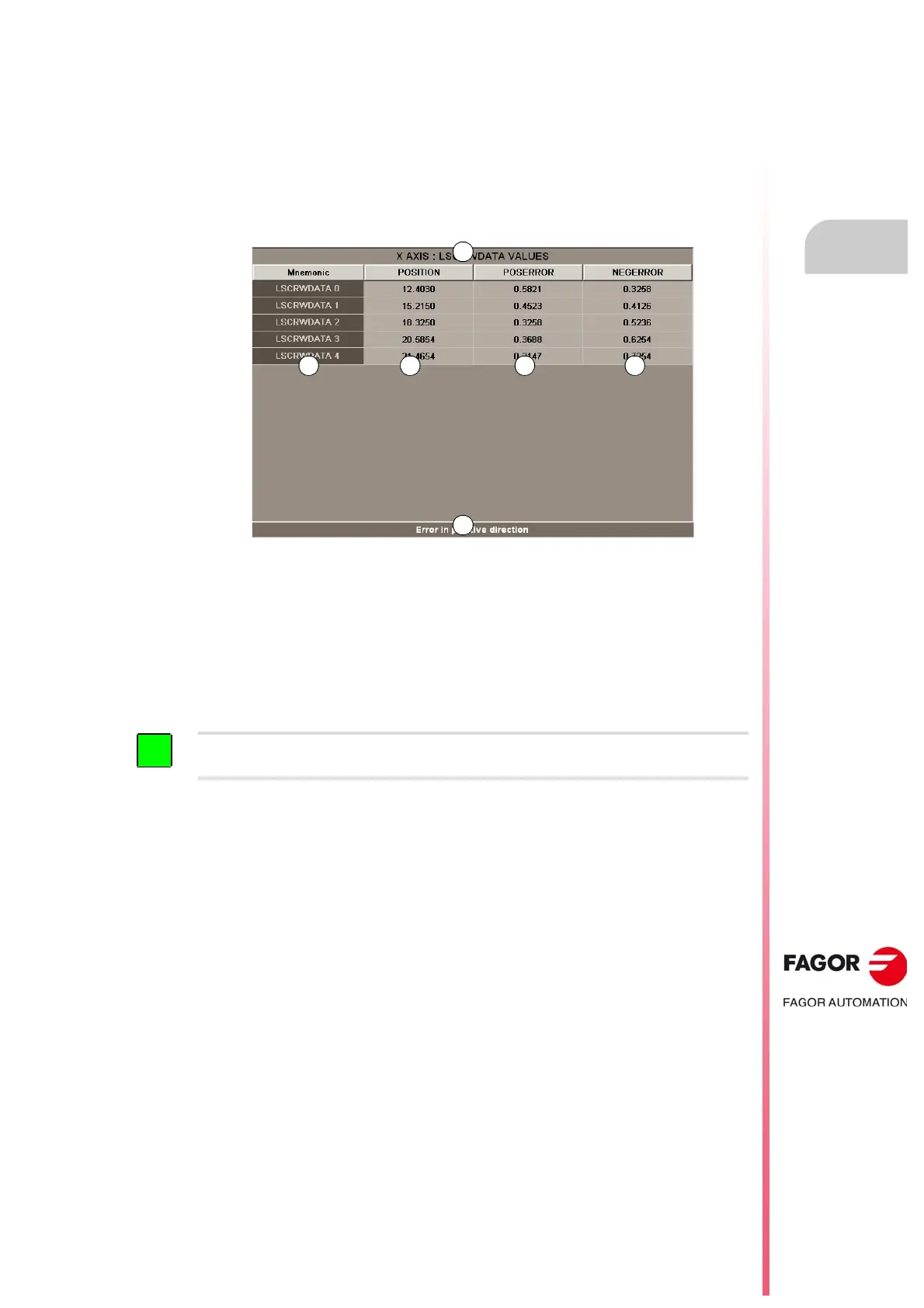

A Name of the selected machine parameter table.
B Compensation point.
C User defined axis position.
D Amount of error to compensate in the positive direction.
E Amount of error to compensate in the negative direction.
F Parameter description.
Sections
"21.3.1 Data editing and validation" and "21.3.4 Importing and exporting
compensation tables."
of this chapter show how to edit the parameters of the tables.
A
B C D E
F
To obtain further information about the data appearing in the table, refer to the chapter on machine
parameters of the installation manual.
