Operating manual.
CNC 8060
CNC 8065
EDISIMU MODE (EDITING AND SIMULATION)
8.
Working in the editing window.
·173·
(REF: 1807)

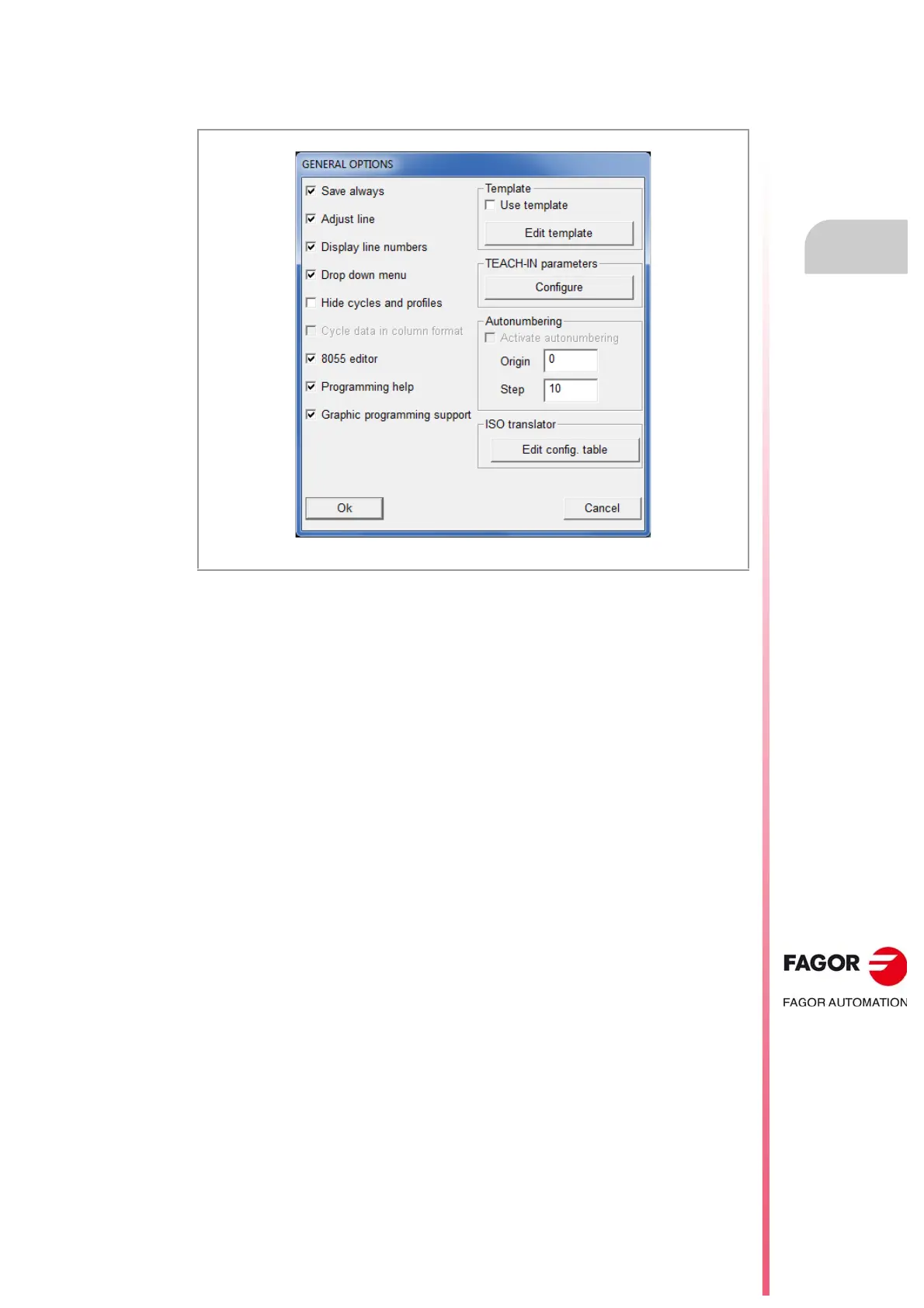

8.4.6 Customizing the editor (general options).
Save always.
Activating the automatic saving of the program; if this option is not active, the program is
saved from the softkey menu. When this option is active, the CNC will automatically save
the program every time the cursor changes blocks. In large programs (more than 200 kB),
the CNC saves the program when the user has not modified the program for about 5 seconds.
Line adjust.
Adjust the long blocks to the size of the window dividing the block into several lines. In large
programs (more than 200 kB), the CNC does not adjust the lines.
Show the line number.
Show the line numbers at the editor.
Drop menus.
Organize the horizontal softkey menu from edisimu mode in drop menus.
Hide cycles and profiles.
When opening the program, insert the canned cycle or profile, the editor only shows the name
of the element; otherwise, it shows the entire content. In both cases, the content of the
canned cycle or the profile can be displayed or hidden by pressing [ALT][–]. In large programs
(more than 200 kB), the editor does not hide the canned cycles or the profiles.
Editor 8055.
Activate editing in 8055 CNC language. See "8.2.2 Editing a program in the 8055 CNC
language"
on page 159.
Programming assistance.
Activate the contextual assistance for programming commands in high level language.
Contextual assistance is not available when using the 8055 CNC language. See
"8.3.2 Contextual programming assistance." on page 167.
