Operating manual.
CNC 8060
CNC 8065
DESCRIPTION OF THE KEYS
1.
VERTICAL KEYB / VERTICAL KEYB + MOUSE. (8065).
·43·
(REF: 1807)

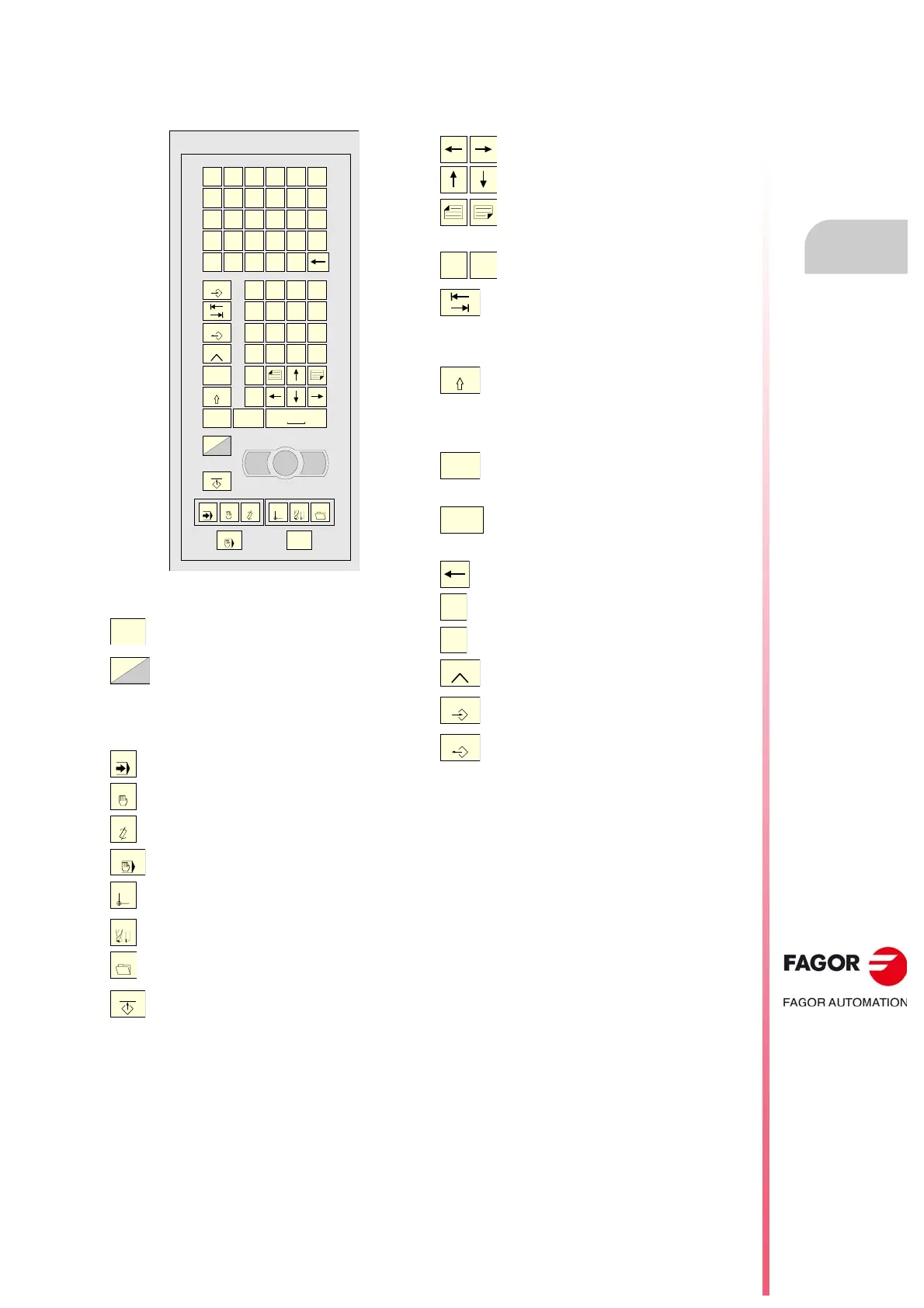

1.5 VERTICAL KEYB / VERTICAL KEYB + MOUSE. (8065).
Browsing keys.
Work modes.
After accessing the work mode, these keys may be used
to access the various screens of the active work mode
sequentially, pressing [SHIFT] at the same time inverts the
sequence.
Keys to move the cursor.
Editing keys.
Main menu.
Changing the state of an icon. In the MC/TC
mode, it toggles between the standard and the
auxiliary screens.
Automatic mode.
Manual (jog) mode.
EDISIMU mode.
MDI/MDA mode.
User tables (zero offsets, fixtures and arithmetic
parameters).
Tool and magazine table.
Utilities mode.
Configurable mode.
OEM-configurable key that can carry out one of
the following actions.
• Access a CNC work mode.
• Execute an application.
• Access the operating system.
• Carry out no function at all.
END
HOME
789
456
123
_
0
.
+
*
=
/
A B C D E F
G H I J K L
M N Ñ O P Q
R S T U V W
X Y Z
INS DEL
SPACE
ENTER
RECALL
ESC
ALT
CAPS
SHIFT
CTRL
MDI
EDITMANUALAUTO
MAIN
MENU
CUSTOM
TABLES TOOLS UTILITIES
The arrow keys move the cursor one position
to the left, right, up or down.
The previous-page or next-page keys show
the previous or next page at the part-
program or PLC program editor.
The home and end keys move the cursor the
beginning or end of the line.
The tab key moves the cursor to the next field
of the active menu.
Shift.
Hold this key down to write upper case
letters. When combining this key with a
cursor moving key, it selects the text the
cursor slides on.
Shift lock.
It toggles between uppercase and
lowercase letters.
ASCII characters.
Hold this key down and key in the
corresponding ASCII code.
Delete.
Delete.
Insert or overwrite.
Escape key, to cancel the current action
without assuming the changes.
Key to validate commands, data and
program blocks of the editor.
Recover data.
While the Teach-in mode is active, this key
enters the axes and their current position
into the block.
When selecting a profile or conversational
canned cycle in the part-program, the key
accesses either the profile editor or canned
cycle editor accordingly.
