Operating manual.
CNC 8060
CNC 8065
GRAPHICS HD (·T· MODEL).
15.
Configuration. Cancel the graphics.
·271·
(REF: 1807)
15.8 Configuration. Cancel the graphics.
15.9 Configuration. Load machine.
If the physical configuration of the machine changes during execution (for example, spindle
change with different number of axes), the corresponding xca file must be loaded so the
graphics show the changes. The xca files may be loaded either from the softkey menu or
from the program using the instruction #DEFGRAPH.
When changing the machine configuration, the CNC saves the part displayed on the screen
automatically as LastPiece.stl into the folder ../Users/Grafdata, and it recovers it after the
new configuration.

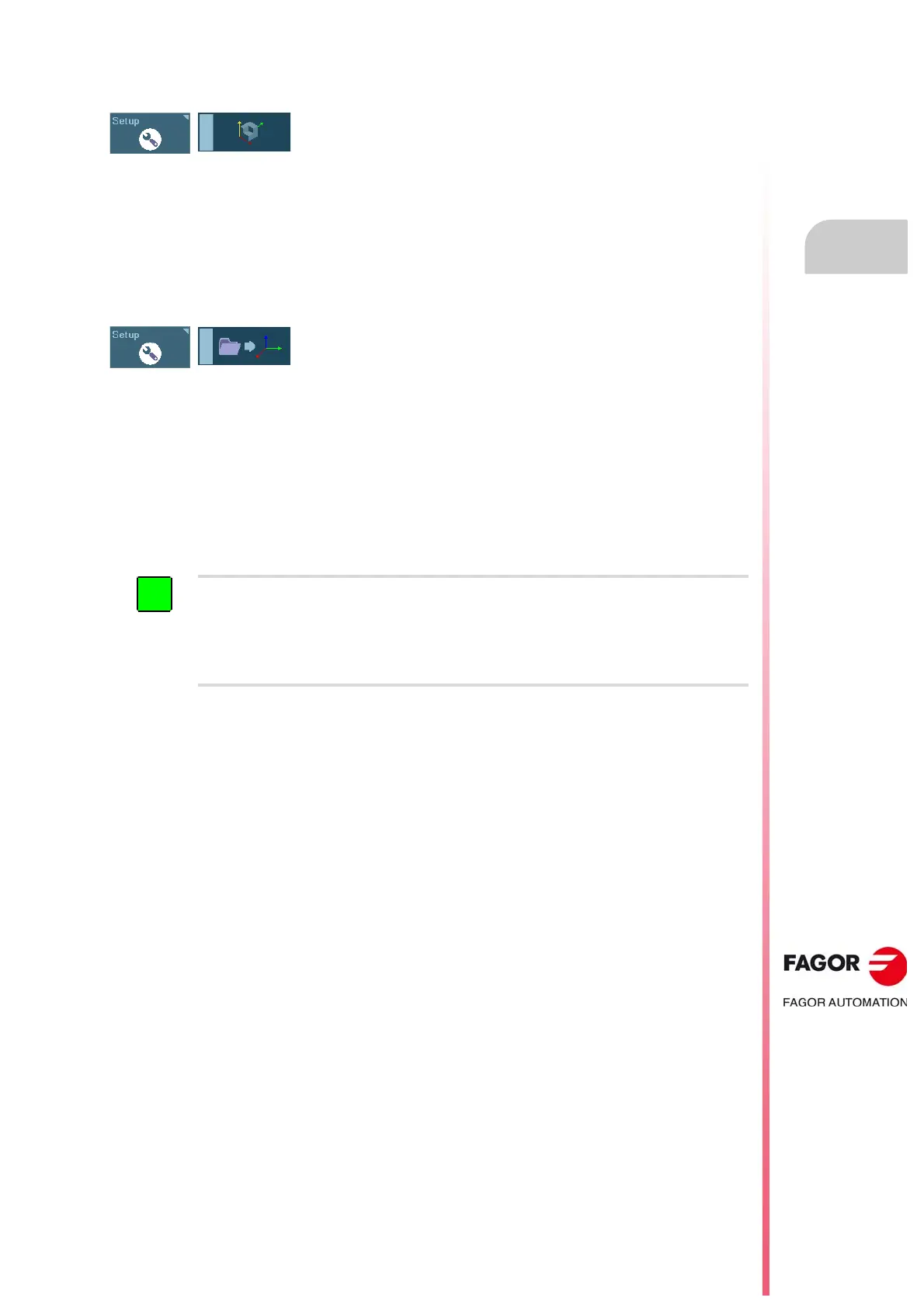

This softkey allows the graphics to be deactivated. When the graphics are deactivated, it is
not possible to graphically represent the program being executed or simulated. Graphics
under automatic and edisimu modes are deactivated independently.
This softkey may be used to load a new machine configuration in HD graphics (xca files).
The CNC offers several xca files, one per model, containing the definition and configuration
of the machine for HD graphics. On power-up, the CNC assumes the last file used.
The machine configuration files supplied by Fagor consist of a single file, the xca. These files cover
most configurations; therefore, new xca will have to be generated when the machine has some special
requirement that affects graphics.
When an OEM creates his own configuration files, for each xca file, he must create a ".def" file with
the same name that completes the configuration of the axes involved in the kinematics. Both files must
be copied when saving the configuration file in another folder.
