Operating manual.
CNC 8060
CNC 8065
GRAPHICS HD (·M· MODEL).
13.
Configuring the graphics window (properties of each window).
·239·
(REF: 1807)

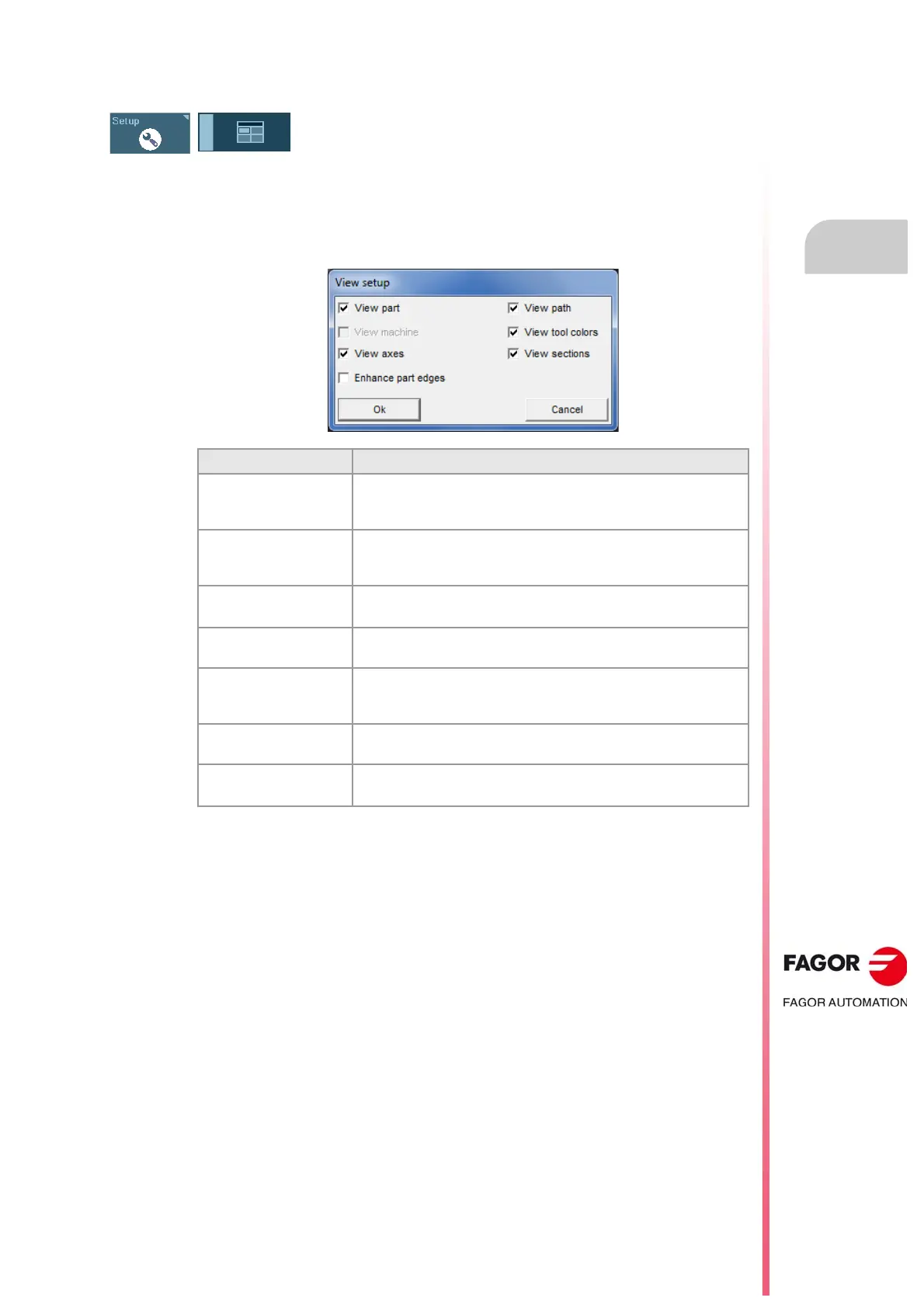

13.4 Configuring the graphics window (properties of each window).
This softkey is used to configure the graphic properties of the active window, so each of the
four windows dividing the screen may have different properties. For example, a window may
show only the part to be machined and another one only the machining tool paths. The active
screen may be changed using the tab key or keys [1] through [4] (depending on the window
to be selected).
Properties. Meaning.
View part. To configure the window to view the part. To view the part, the "View solid"
option must be activated using the "View" softkey. See chapter
"13 Viewing the tool paths and the solid.".
View tool path. Configure the window to show the tool paths. To view the tool paths, the
option "View path" must be activated using the "View" softkey. See
chapter "13 Viewing the tool paths and the solid.".
View machine. Not used.
View tool colors. The diagram shows the tool path of each tool in the color assigned to it.
See "13.6 Configure the colors for the tool path and solid." on page 242.
View axes. The diagram shows the main axes of the origin channel for the part. The
origin of the axes coincides with the part zero. See "13.13 Editing,
displaying and hiding parts." on page 247.
View sections. Configure the window to display the active sections. See
"13.5 Configuring and activating the sections." on page 240.
Enhance part edges. The diagram enhances the edges of the part.
