Fagor CNC 8065 - Horizontal Softkey Menu

Operating manual.
CNC 8060
CNC 8065
13.
GRAPHICS HD (·M· MODEL).
Graphic environment.
·236·
(REF: 1807)

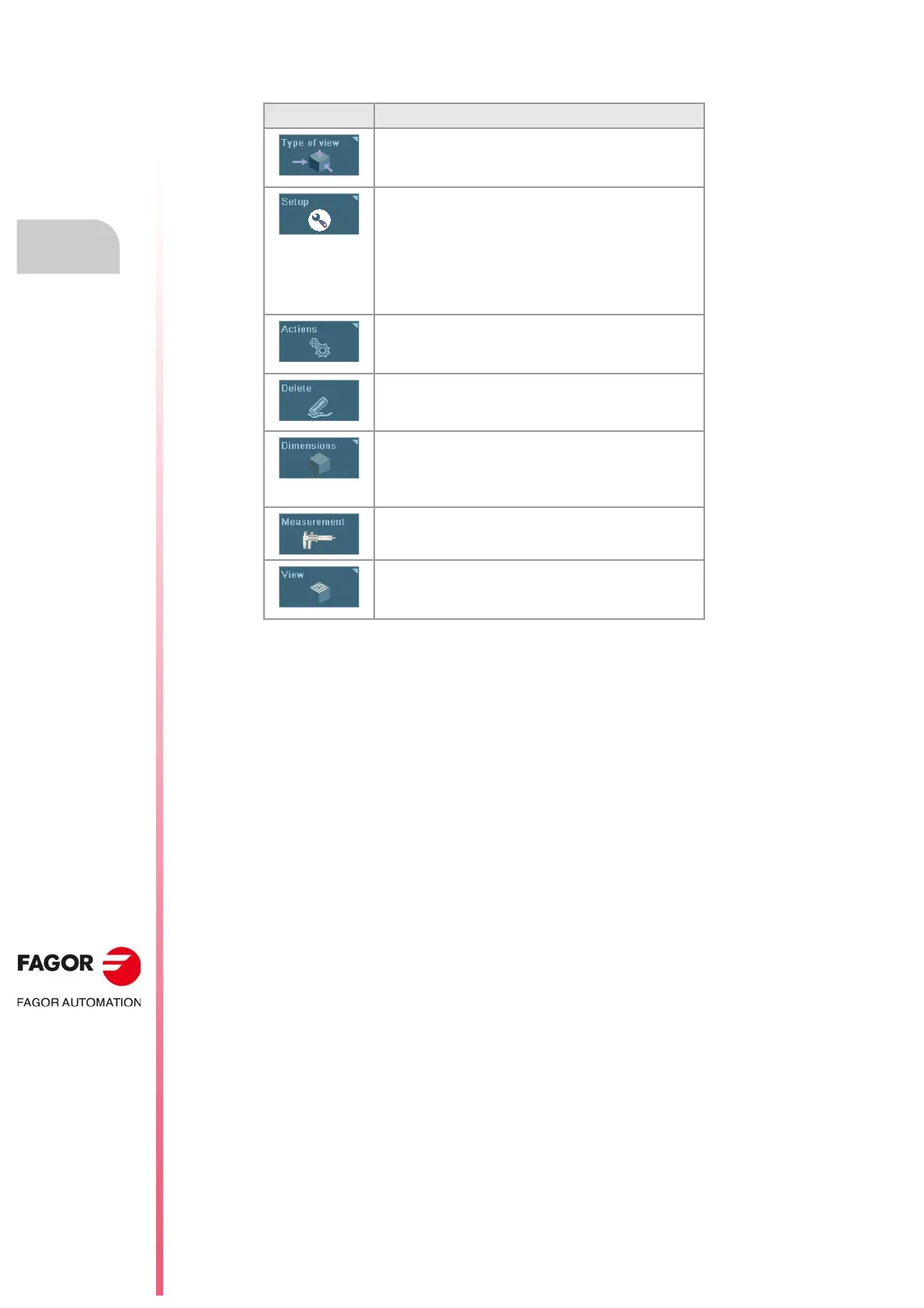

13.1.3 Horizontal softkey menu.
Softkey. Function.
Type of view.
• Select the type of view.
• Select the parts to view.
Configuration.
• Configuring the graphics window.
• Configuring and activating the sections.
• Configure the colors of the tool path and solid.
• General configuration of the graphics.
• Cancel the graphics.
• Load a machine configuration (xca file).
Actions.
• Move sections.
• Print the diagram.
Delete.
• Removes the tool paths and resets the solid to its initial
dimensions.
Dimensions.
• Defines the type and size of the parts.
• Deletes parts.
• Saves and deletes parts.
Measurement.
• Measure the distance between two points.
Ver.
• Views the tool paths and the solid.
• Simulation speed.
