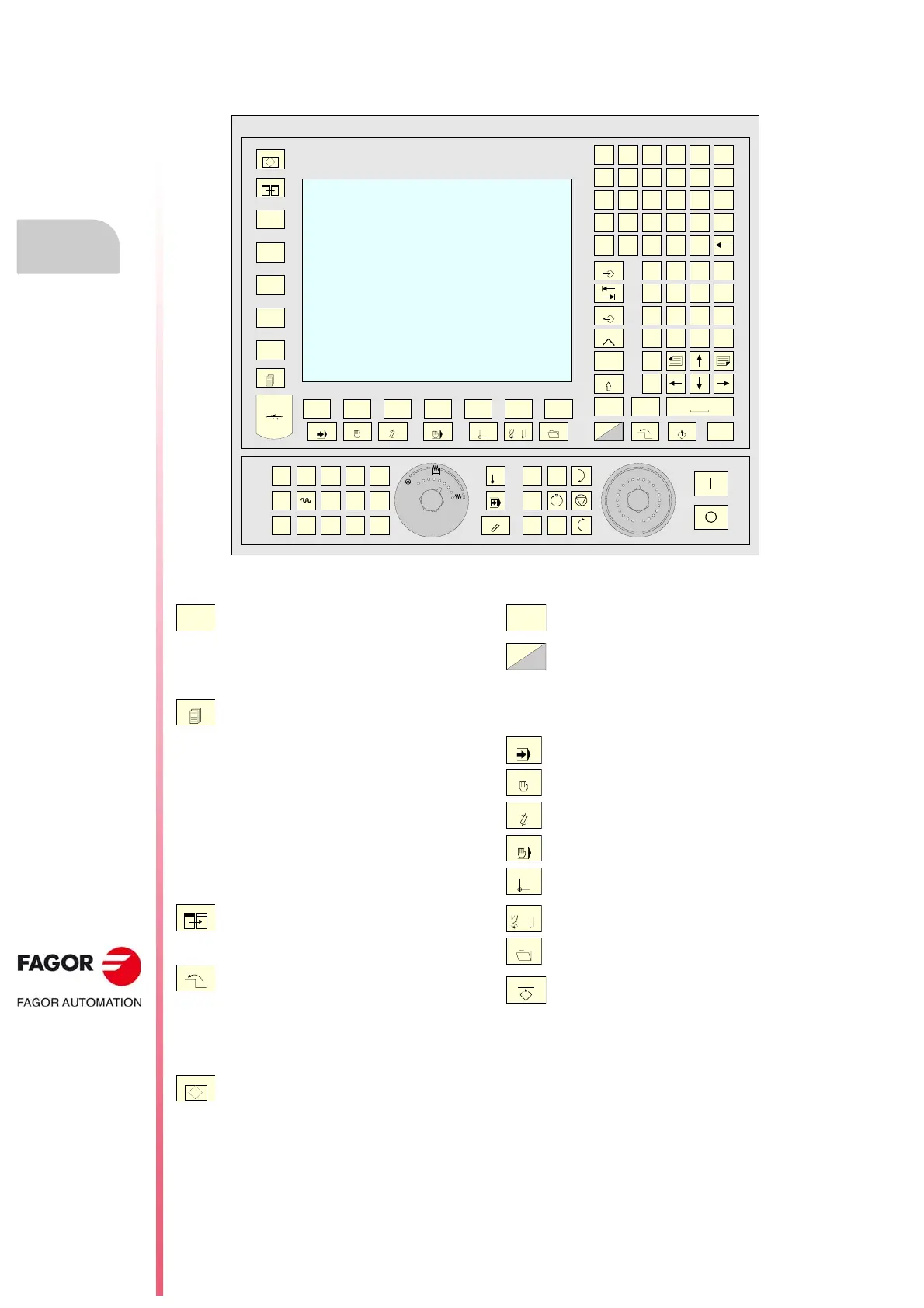

1.2 Monitor LCD-10K (option 1). (8065).
Function keys.
Browsing keys.
Help key.
Browsing keys.
Work modes.
After accessing the work mode, these keys may be used
to access the various screens of the active work mode
sequentially, pressing [SHIFT] at the same time inverts the
sequence.
A B C D E F
G H I J K L
M N Ñ O P Q
R S T U V W
X Y Z
INS DEL
F1 F2 F3 F4 F5 F6 F7
END
HOME
7 8 9
4 5 6
1 2 3
_
0
.
+
*
=
/
SPACE
ALT
ENTER
RECALL
ESC
CAPS
SHIFT
CTRL
MAIN
MENU
CUSTOM
200
190
180
170
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
4
2
0
FEED
ZERO
SINGLE
RESET
10000
1000
100
10
1
100
10
1
jog
F8
F9
F10
F11
F12
MANUAL MDIAUTO EDIT TABLES UTILITIESTOOLS
HELP
?
FOCUS
BACK
NEXT
_
+
X Y Z
4 5 6
_
+
Softkeys.
Keys F1 through F12 select the options of the
softkey menus.
NEXT key.
Configurable key that can carry out one of the
following actions.
• Access the various screens of the active
work mode sequentially, pressing [SHIFT] at
the same time inverts the sequence. In the
PLC mode, it switches between the various
active services.
• Sequentially access the different channels.
• The horizontal softkey menu shows the
available screens and the vertical menu
shows the available channels.
FOCUS key.
It is used to switch between the different windows
of the screen.
BACK key.
On the horizontal softkey menu, it lets you go up
from the softkey sub-menu to the previous level
from where that menu was accessed.
HELP key.
It accesses the CNC's system help.
F1
NEXT
FOCUS
BACK
HELP
?
Main menu.
Changing the state of an icon. In the MC/TC
mode, it toggles between the standard and the
auxiliary screens.
Automatic mode.
Manual (jog) mode.
EDISIMU mode.
MDI/MDA mode.
User tables (zero offsets, fixtures and arithmetic
parameters).
Tool and magazine table.
Utilities mode.
Configurable mode.
OEM-configurable key that can carry out one of
the following actions.
• Access a CNC work mode.
• Execute an application.
• Access the operating system.
• Carry out no function at all.
MAIN
MENU
AUTO
MANUAL
EDIT
MDI
TABLES
TOOLS
UTILITIES
CUSTOM
