Fagor CNC 8065 - Page 2. Page to Display the Captured Position Values (Coordinates)

Operating manual.
CNC 8060
CNC 8065
KINEMATICS CALIBRATION.
26.
Kinematics calibration (Kinematic offsets).
·475·
(REF: 1807)

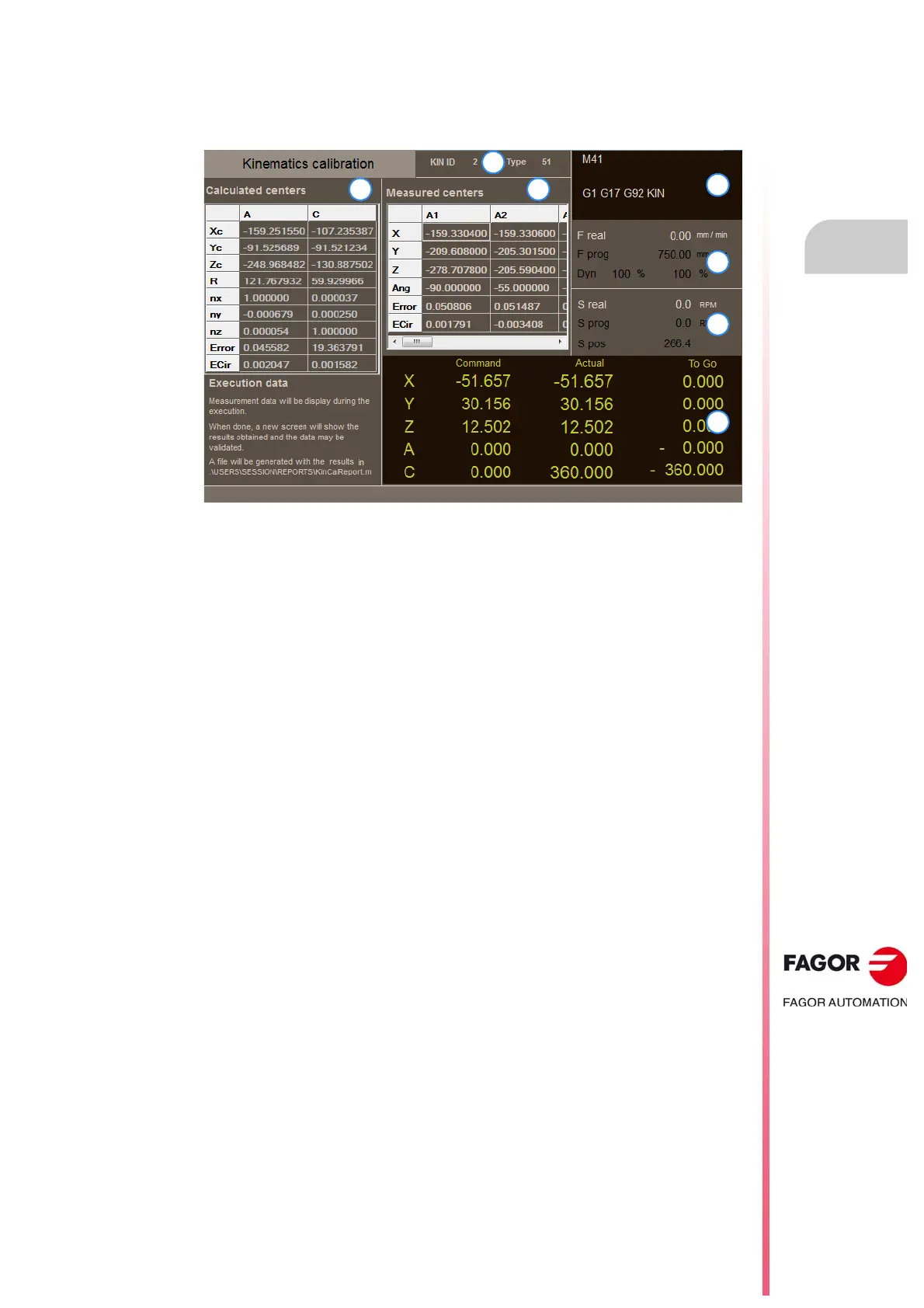

26.1.2 Page 2. Page to display the captured position values (coordinates).
The CNC displays this page when the calibration process begins. This page shows the
probed coordinates and the calculated data.
A Number and type of active kinematics.
B Calculated centers.
C Ball centers measured in each position.
D Active "G" functions and high-level commands.
E Information related to the feedrate "F" of the axes:
F Information related to the spindle speed "S".
G Programmed coordinate and current position of the axes.
Xc, Yc, Zc: Axis rotation center in base machine coordinates.
nx, ny, nz: Rotation vector.
Error: Error due to kinematics and geometry parameters. The better the
kinematics parameters are set, the smaller the error should be.
ECirc: Circularity (roundness) error due to machine geometry.
A
G
B C
D
E
F
