RX2530 M4 Upgrade and Maintenance Manual 111
I The connectors for the PSUs are integrated on the system board,
therefore, the PSUs are connected directly to the system board.
PSU configurations

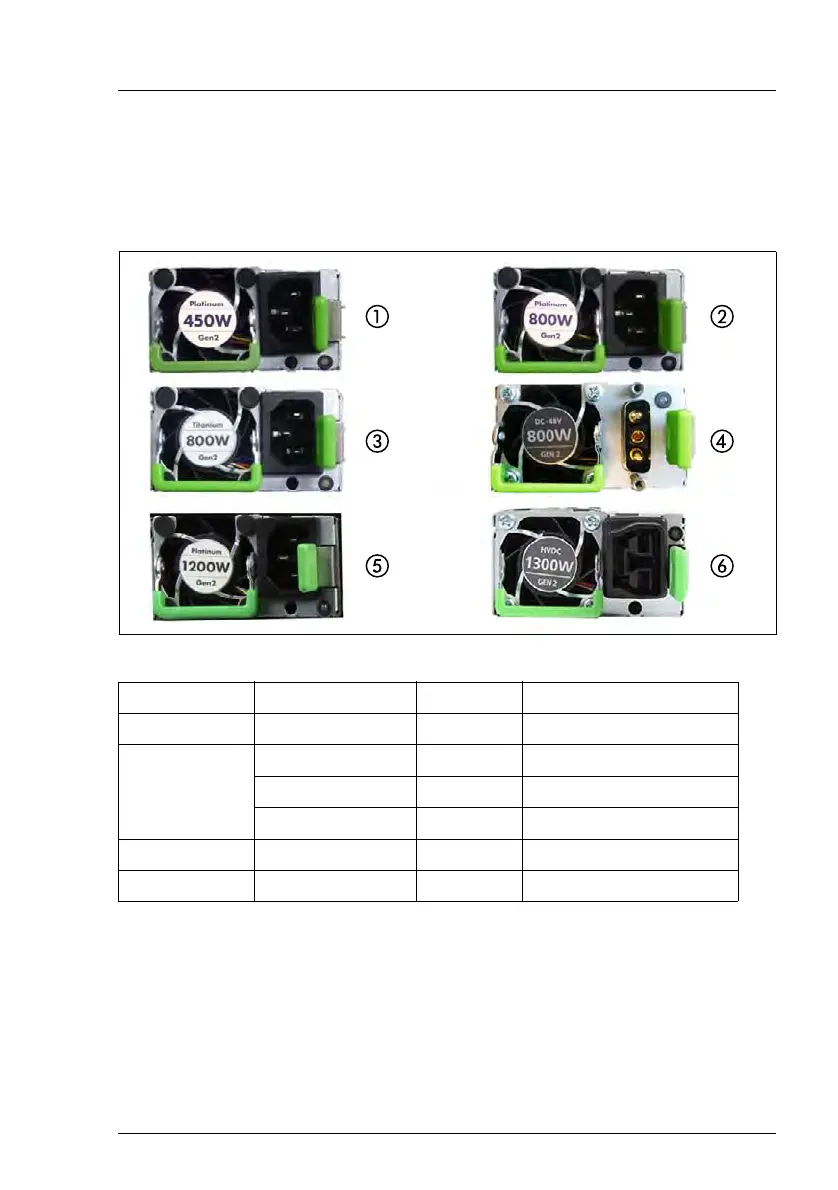

Figure 33: Example types of PSUs
I All different PSUs can be installed, removed or replaced in the same way.
Power class Number in figure Power PSU
1 1 450 W AC PSU Platinum
2
2 800 W AC PSU
3 800 W AC PSU Titanium
4 800 W DC PSU -48 V
3 5 1200 W AC PSU
4 6 1300 W HVDC PSU 380 V
