Fujitsu PRIMERGY RX2530 M4

RX2530 M4 Upgrade and Maintenance Manual 51
Basic hardware procedures
4.3.2 Disconnecting the power cord (DC PSU)
Example DC PSU -48 V

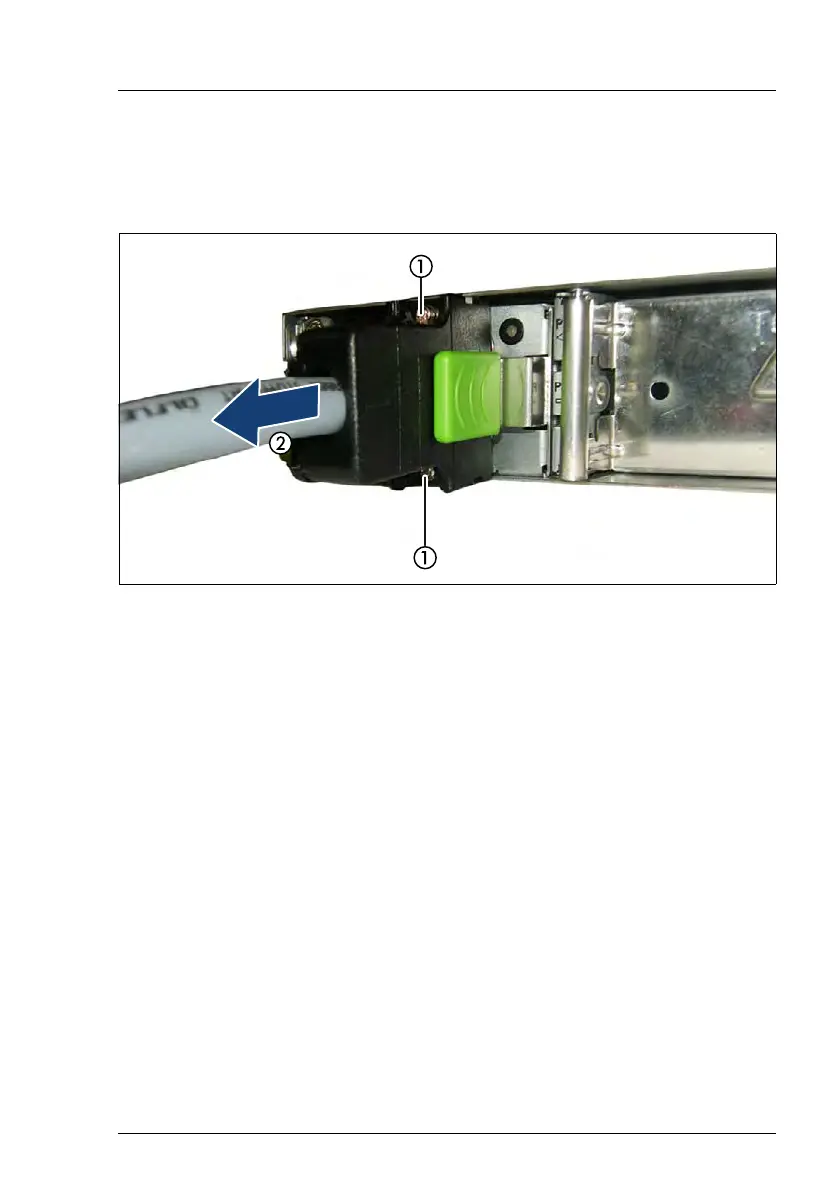

Figure 3: Disconnecting the server from the dc voltage - example DC PSU -48 V
Ê Remove the two screws (1).
Ê Disconnect the power cord from the PSU (2).
