RX2530 M4 Upgrade and Maintenance Manual 213
Expansion cards and backup units
9.4.1 Installing an OCP module
9.4.1.1 Preliminary steps
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 52
Ê Remove the riser module 3, see section "Removing a riser module" on
page 68.
9.4.1.2 Removing the dummy cover

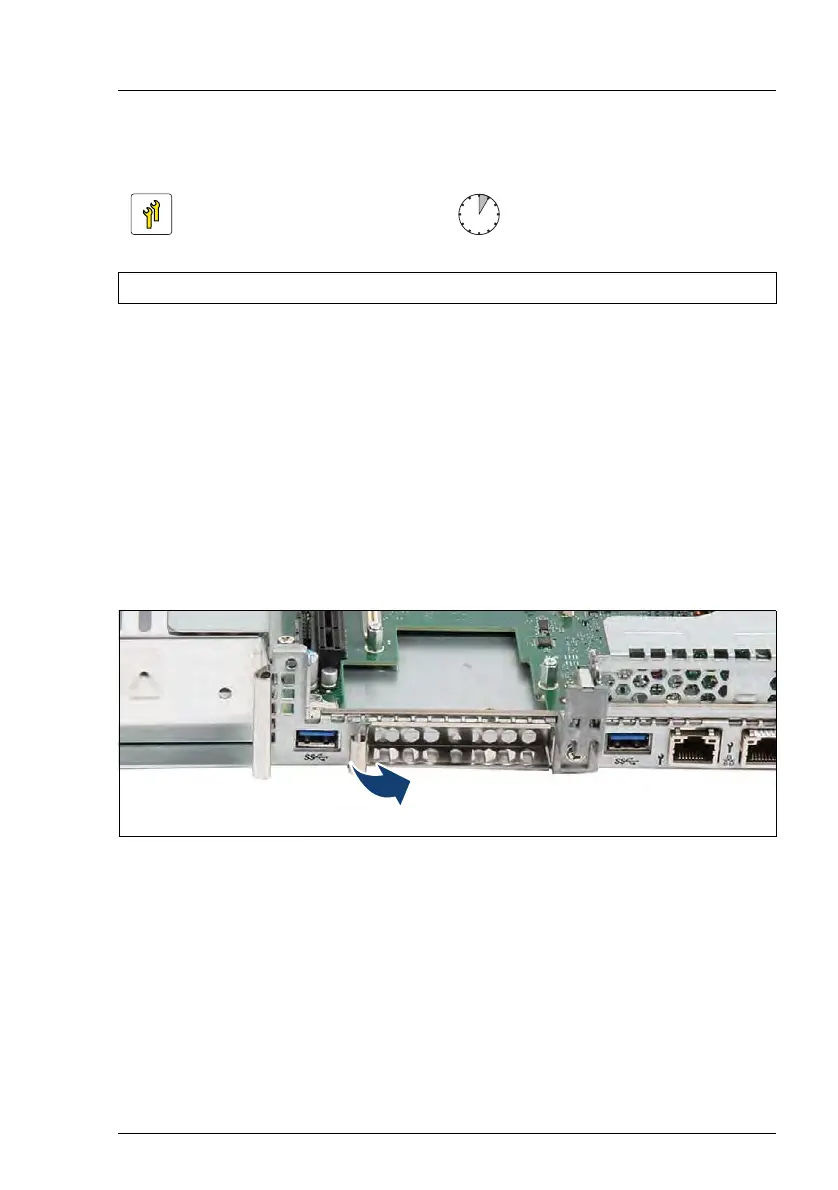

Figure 127: Removing the dummy cover
Ê Grip the handle and pull out the dummy cover.
V CAUTION!
Keep the dummy cover for future use. If an OCP module is removed and
not immediately replaced by a new one, a dummy cover must be
reinstalled in the bay to comply with applicable EMC regulations and
satisfy cooling requirements.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tool: – Phillips PH1 / (+) No. 1 screw driver
To Next Page
