RX2530 M4 Upgrade and Maintenance Manual 247

Expansion cards and backup units

9.5.7.3 Installing the new TFM

Example RAID controller PRAID EP400i/EP420i

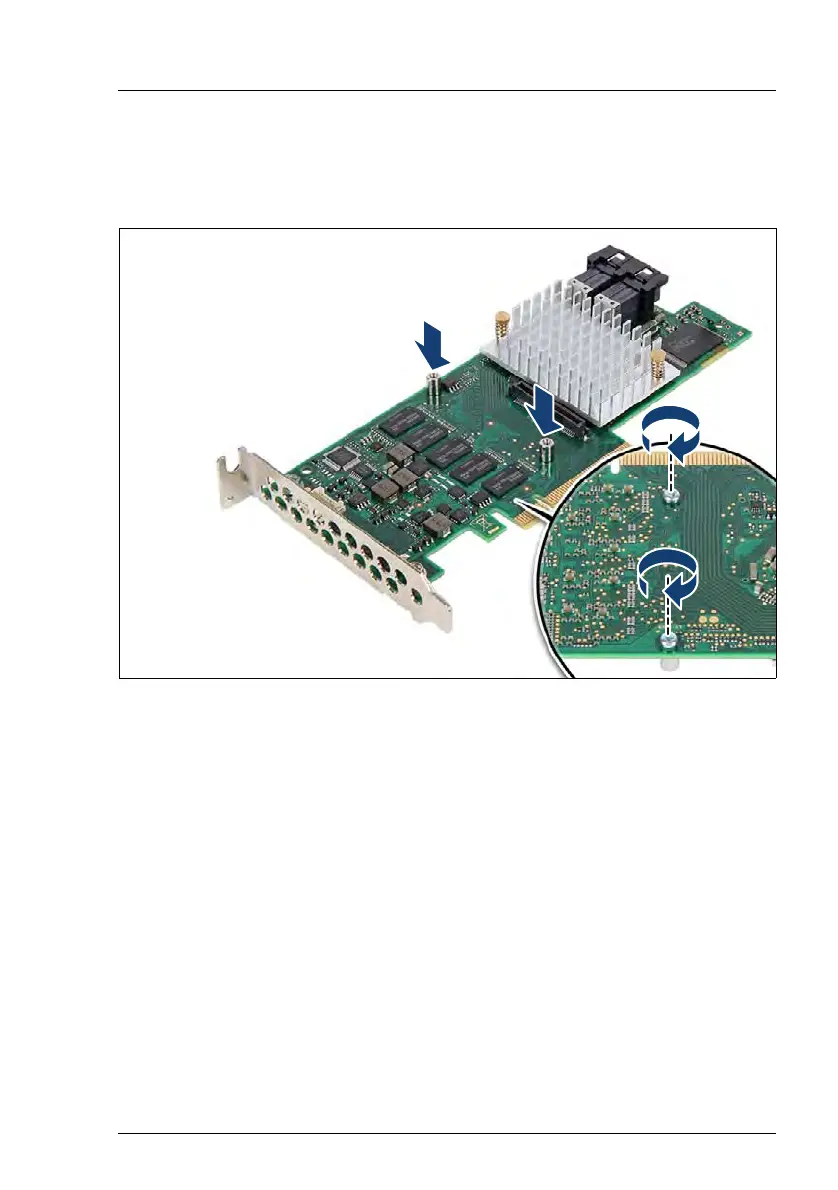

Figure 162: Installing the TFM (A)

Ê If no TFM has been installed before: fit the two spacer bolts on the RAID

controller.
