186 Upgrade and Maintenance Manual RX2530 M4
Hard disk drive (HDD) / solid state drive (SSD)

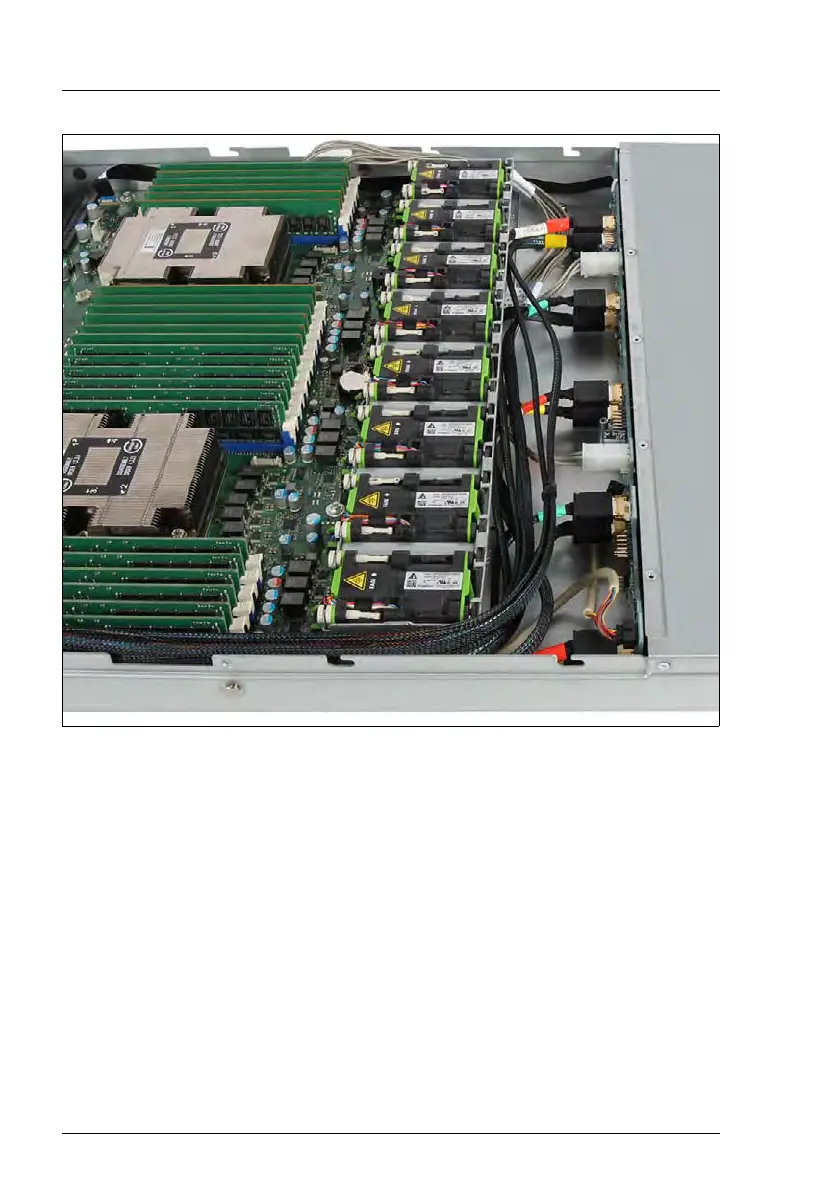

Figure 101: Connecting Oculink cables - example 10x Oculink
I For the cable plan, see chapter "Appendix B" on page 437.
7.4.12.8 Concluding steps
Ê Insert all HDD/SSD modules, see section "Installing a 2.5-inch HDD/SSD
module" on page 157.
I Make sure that you reinstall the HDD/SSD module in the bay it was
located before the HDD backplane replacement.
Ê Insert all dummy modules, see section "Installing a 2.5-inch HDD/SSD
dummy module" on page 160.
Ê "Reassembling" on page 57
