Expansion cards and backup units
9.5.5.2 Replacing the M.2 SSD
Ê Remove the PDUAL AP200, see section "Removing the expansion card" on
page 231.

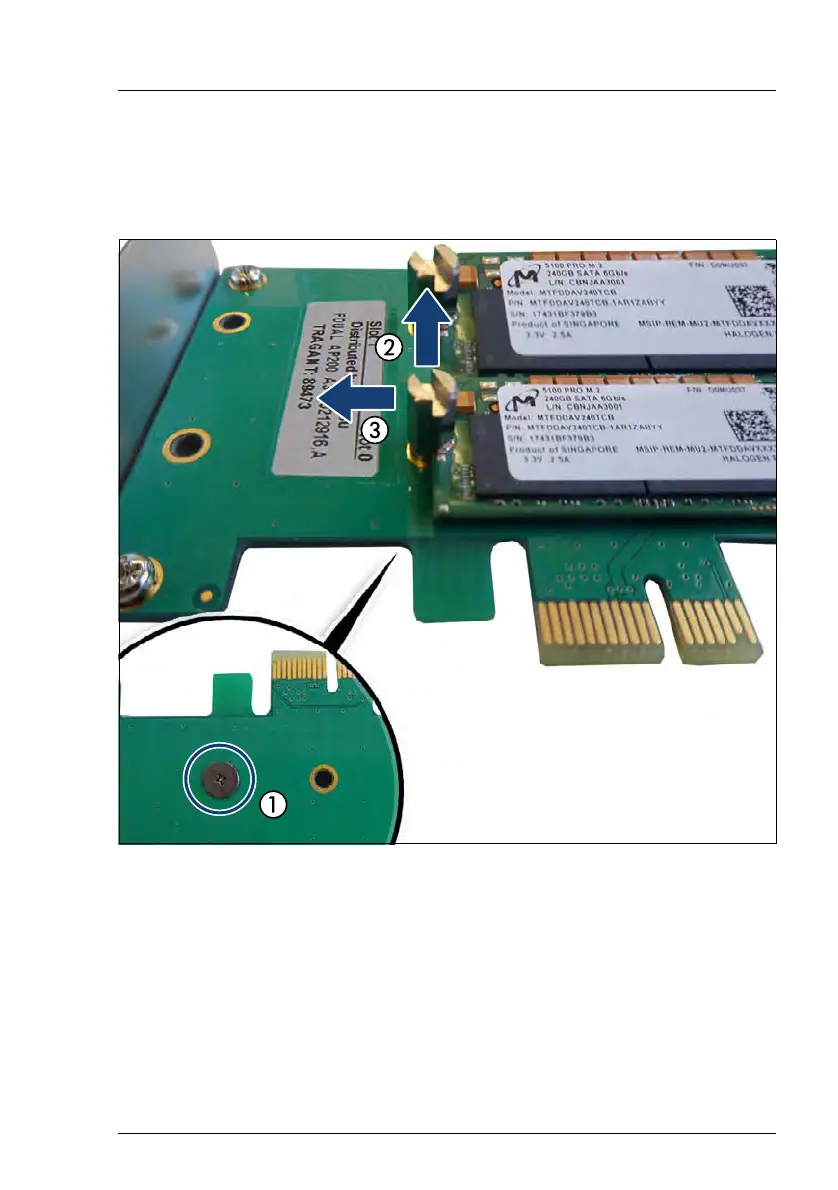

Figure 156: Removing the M.2 SSD (A)
Ê Remove the screw (see circle) of the defective M.2 SSD at the bottom side
(1).
I You can use the iRMC web interface or the ServerView RAID
manager to detect the defective M.2 SSD.
Ê Pull the bolt out of the hole (2).
Ê Remove the bolt (3).
