RX2530 M4 Upgrade and Maintenance Manual 151
Hard disk drive (HDD) / solid state drive (SSD)
7.4.3 Configuration with up to 10 HDD/SSD modules
I SAS HDDs must not be populated above or below BC-SAS / BC-SATA
HDDs. In order to avoid this configuration, please make a free bay
intentionally.
For example, if only one SAS HDD or one BC-SAS / BC-SATA HDD is
ordered, this HDD will be installed in position 0 and position 1 will not be
used.
SAS HDDs and BC-SAS / BC-SATA HDDs can be mixed as long as SAS
HDDs are not populated above or below BC-SAS / BC-SATA HDDs.
The same kind of HDDs can be populated above or below each other.
Configuration with up to 10 HDD/SSD modules

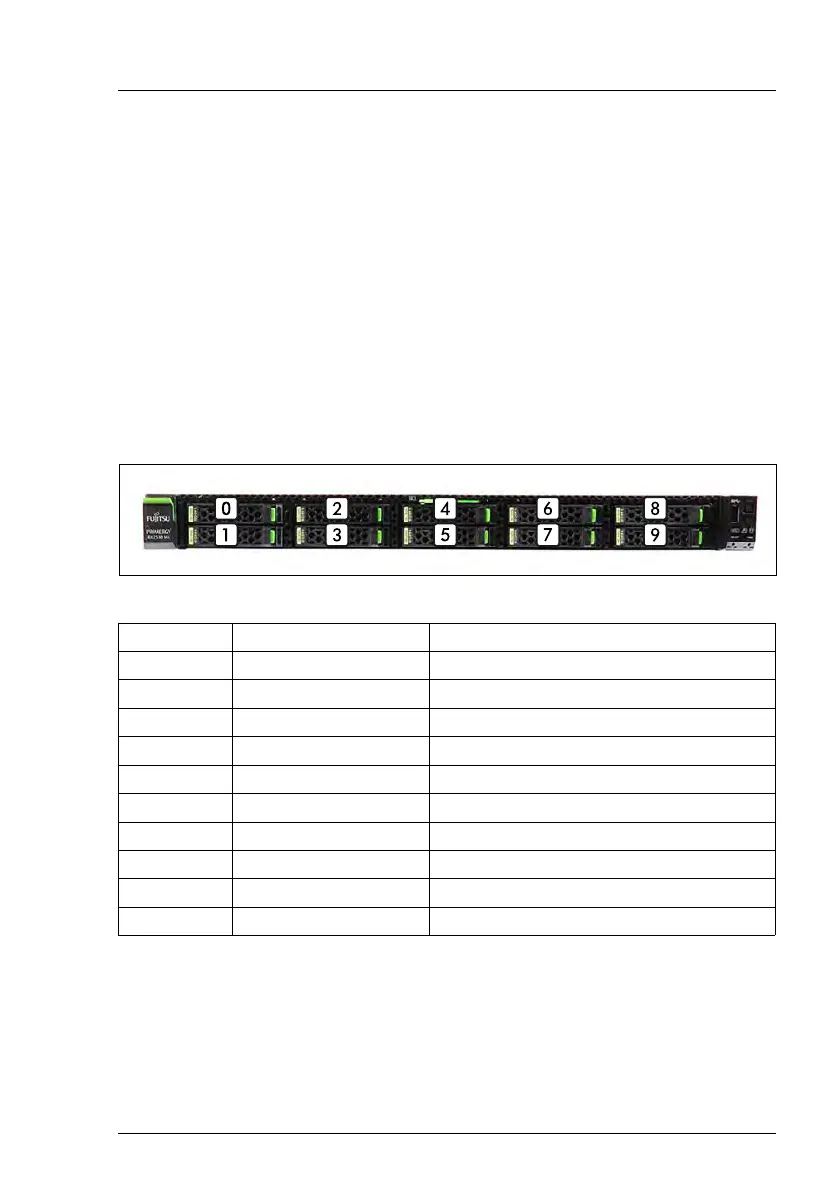

Figure 68: Configuration with up to 10 HDDs/SSDs
Position Logical drive number ServerView RAID Manager display name
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
[2] 2 Vendor Product (2)
[3] 3 Vendor Product (3)
[4] 4 Vendor Product (4)
[5] 5 Vendor Product (5)
[6] 6 Vendor Product (6)
[7] 7 Vendor Product (7)
[8] 8 Vendor Product (8)
[9] 9 Vendor Product (9)
