10.2.3 Installing a memory module

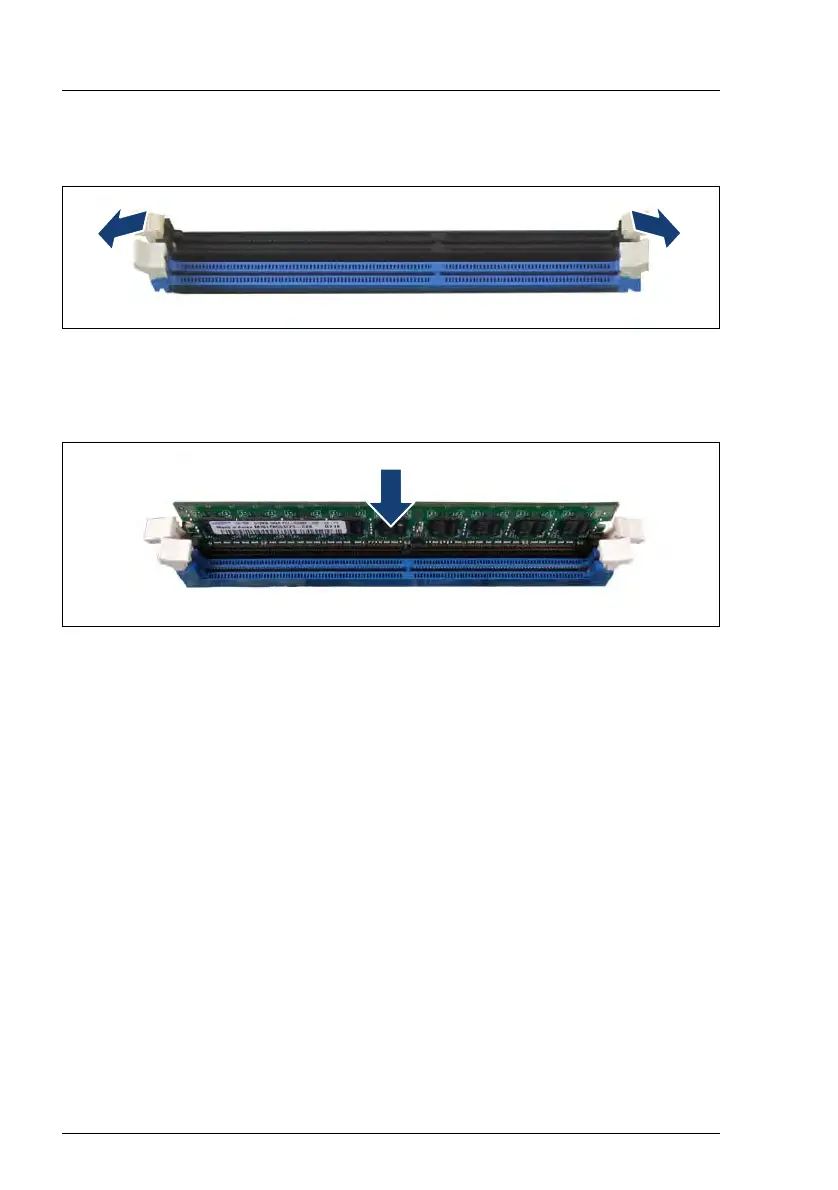

Figure 190: Opening the securing clips
Ê Press the securing clips on both sides of the memory slot concerned
outward.
Figure 191: Installing a memory module
Ê Align the notch on the bottom of the module with the crossbar in the slot.
Ê Press down on the memory module until the securing clips snap into the
cutouts at each end of the module.
