6.2.2.2 Note for servers using CMA (Cable Management Arm)
Regarding of removing PSUs, additional tasks are needed, due to an
interference between CMA stopper and the PSUs.

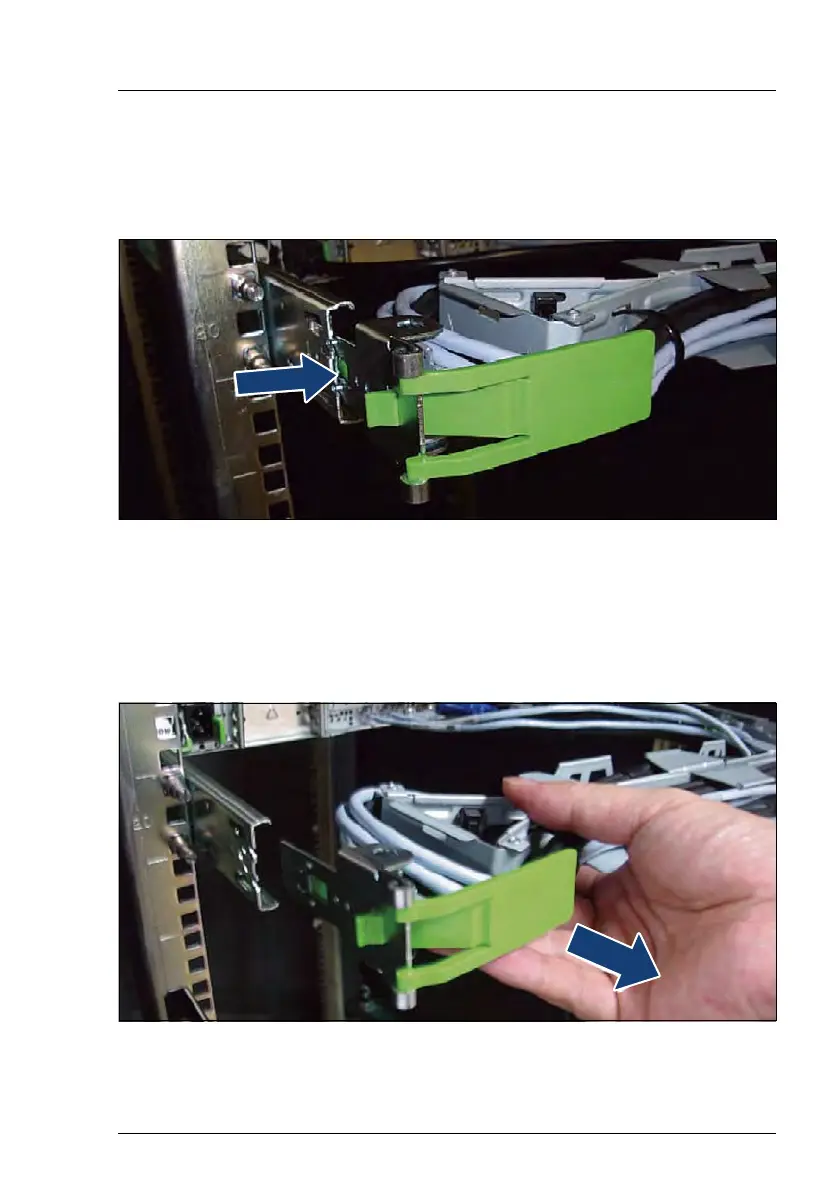

Figure 39: Unlocking the CMA stopper
Ê Push the lock spring inward to unlock the CMA stopper.
V CAUTION!
In case of not enough space at the under side, unlock the CMA
stopper of the server below and pull out the CMA to the rear side.
Figure 40: Removing the CMA stopper
Ê Remove the CMA stopper with the mounted crossbar.
