264 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units
Ê Lift the holder out of the chassis.
9.6.3.3 Disconnecting the FBU cable from the FBU

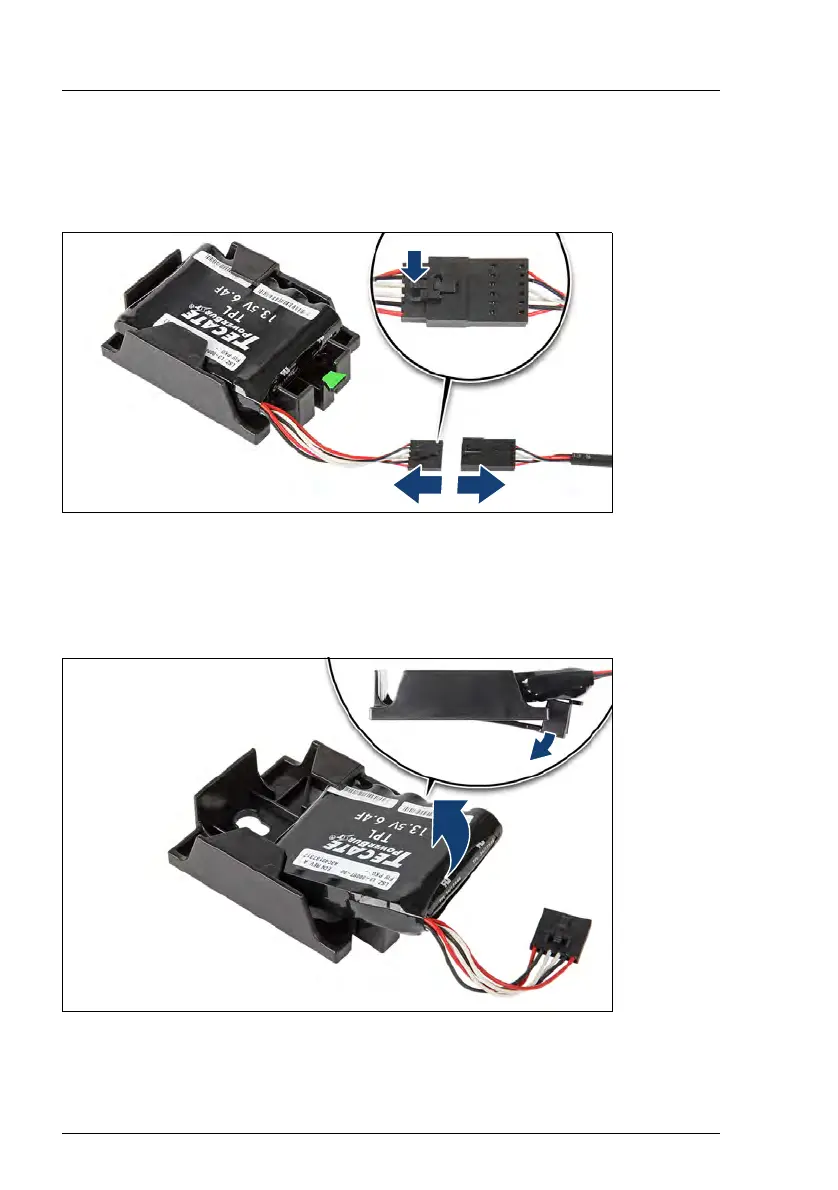

Figure 184: Disconnecting the FBU cable from the FBU
Ê Disconnect the FBU cable from the FBU.
9.6.3.4 Removing the FBU from the holder
Figure 185: Removing the FBU from the holder
Ê Pull the FBU at a slight angle out of the holder.
