RX2530 M4 Upgrade and Maintenance Manual 243
Expansion cards and backup units
9.5.6 Replacing a riser card
9.5.6.1 Preliminary steps
Ê "Locating the defective server" on page 47
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 52
Ê "Locating the defective component" on page 48
Ê Remove the corresponding riser module, see section "Handling riser
modules" on page 67.
9.5.6.2 Removing the defective riser card
Ê Remove the expansion card, see section "Removing the expansion card" on
page 231.

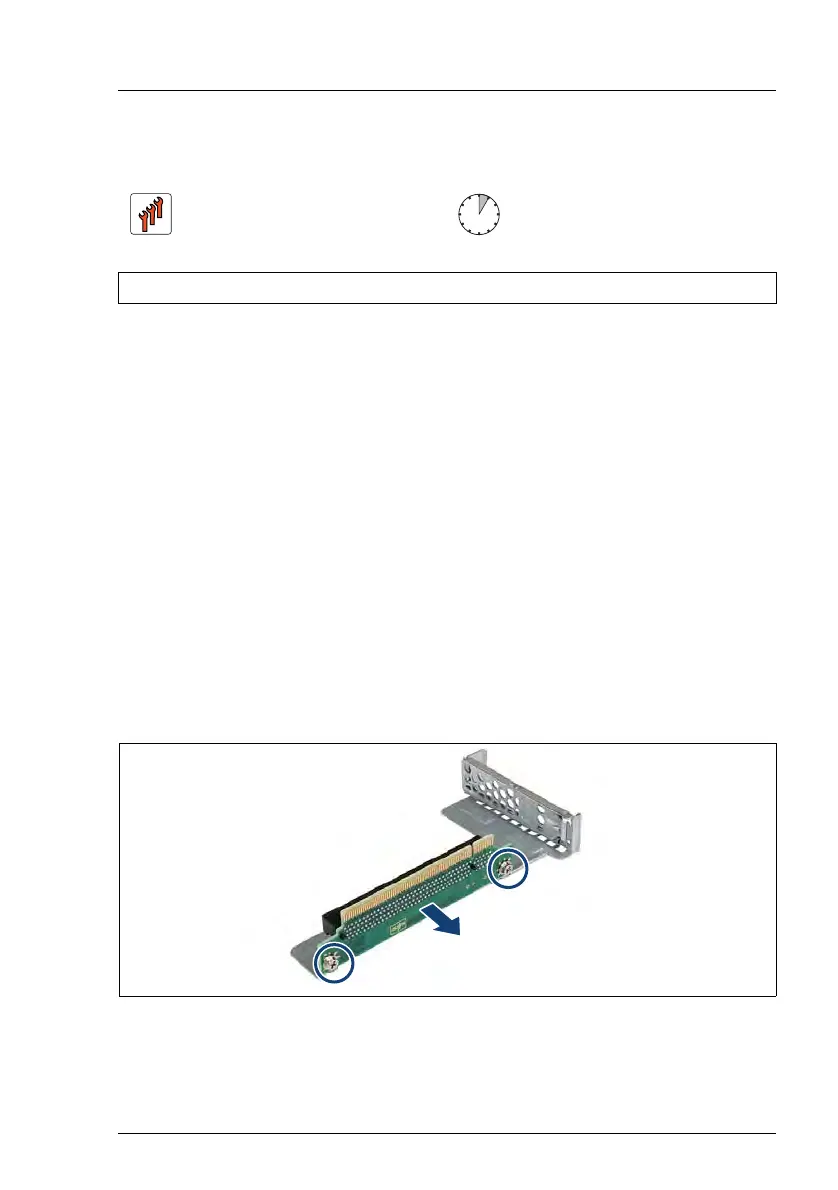

Figure 158: Removing the riser card - example riser module 2
Ê Remove the two screws (see circles).
Ê Remove the riser card.
Field Replaceable Unit
(FRU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
