Expansion cards and backup units
9.6.2.2 Preparing the riser holder

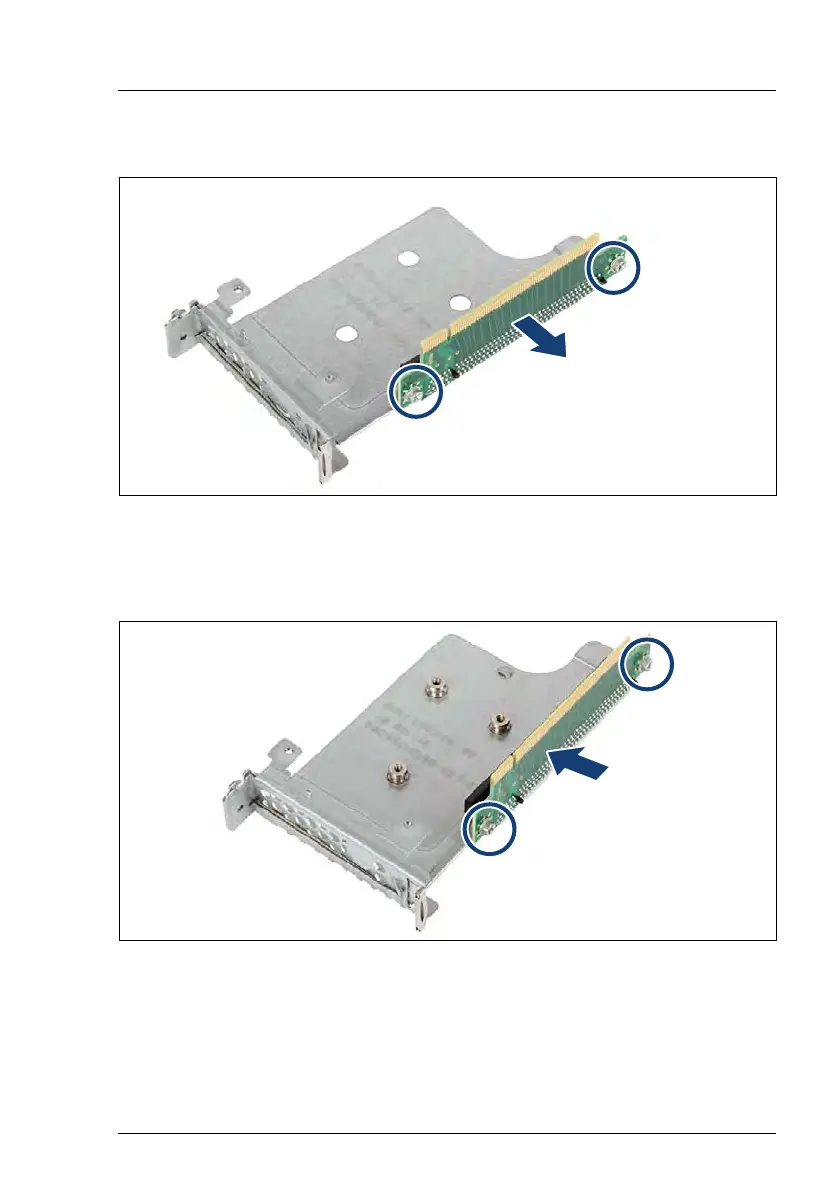

Figure 177: Removing the riser card - example riser module 3
Ê Remove the two screws (see circles).
Ê Remove the riser card.
Figure 178: Installing the riser card - example riser module 3
Ê Insert the riser card.
Ê Fasten the riser card with two screws (see circles).
