216 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units
9.4.2.3 Installing the dummy cover

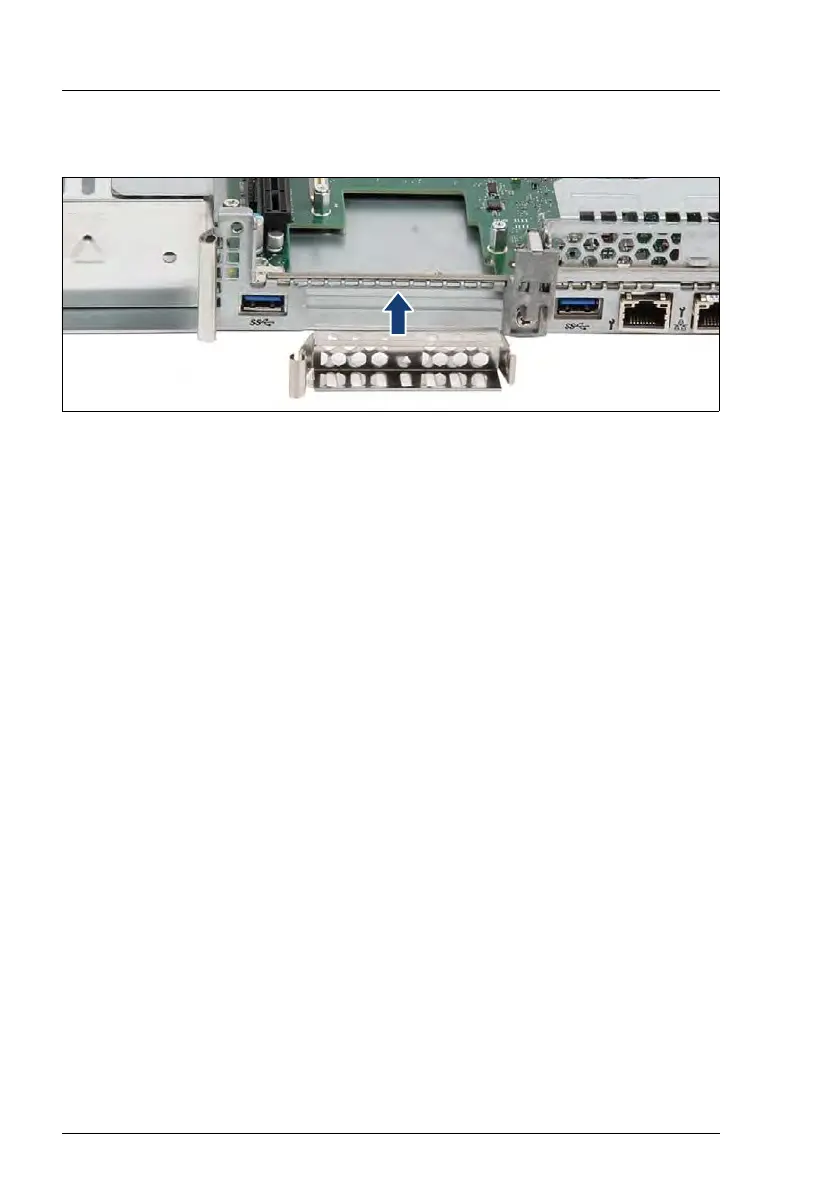

Figure 130: Installing the dummy cover
Ê Insert the dummy cover. Notice the position of the handle.
9.4.2.4 Concluding steps
Ê Install the riser module 3, see section "Installing a riser module" on page 68.
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 63
Ê "Switching on the server" on page 66
