232 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units

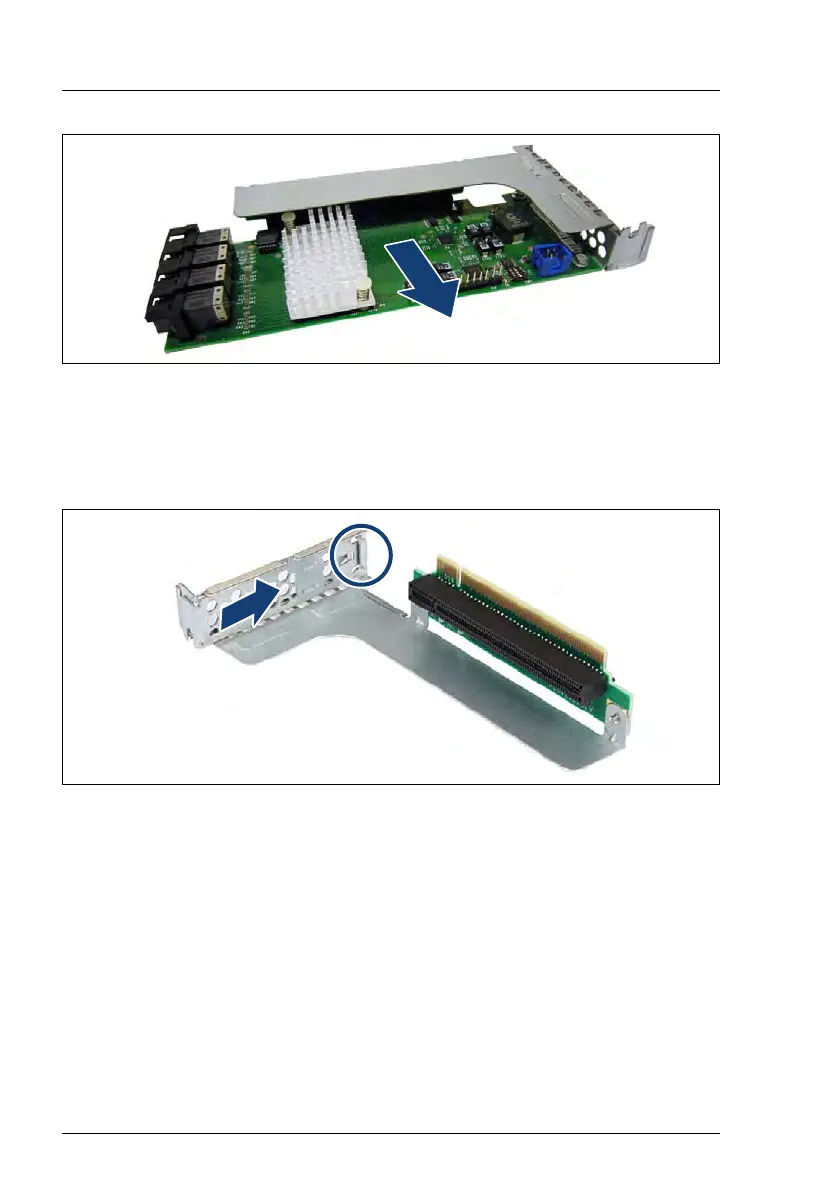

Figure 149: Removing the expansion card - example riser module 2, slot 3
Ê Pull out the expansion card from the riser card slot.
9.5.2.3 Installing the slot cover (only slot 2-4)
Figure 150: Installing the slot cover - example riser module 2
Ê Insert the slot cover. Make sure that the lug on the slot cover clicks into place
in the corresponding bracket (see circle).
