Processor (CPU)
2. Loosen the captive screws 4 and then 3 rotating them two or three turns
each.
3. Repeat the step 2 until the screws 4 and 3 are completely loosened.
4. Loosen the captive screws 2 and then 1 rotating them two or three turns
each.
5. Repeat the step 4 until the screws 2 and 1 are completely loosened.
Ê Lift the heat sink together with the CPU frame out of the chassis.
V CAUTION!
Pay special attention not to damage any system board components
surrounding the CPU socket.
11.3.3 Removing the CPU

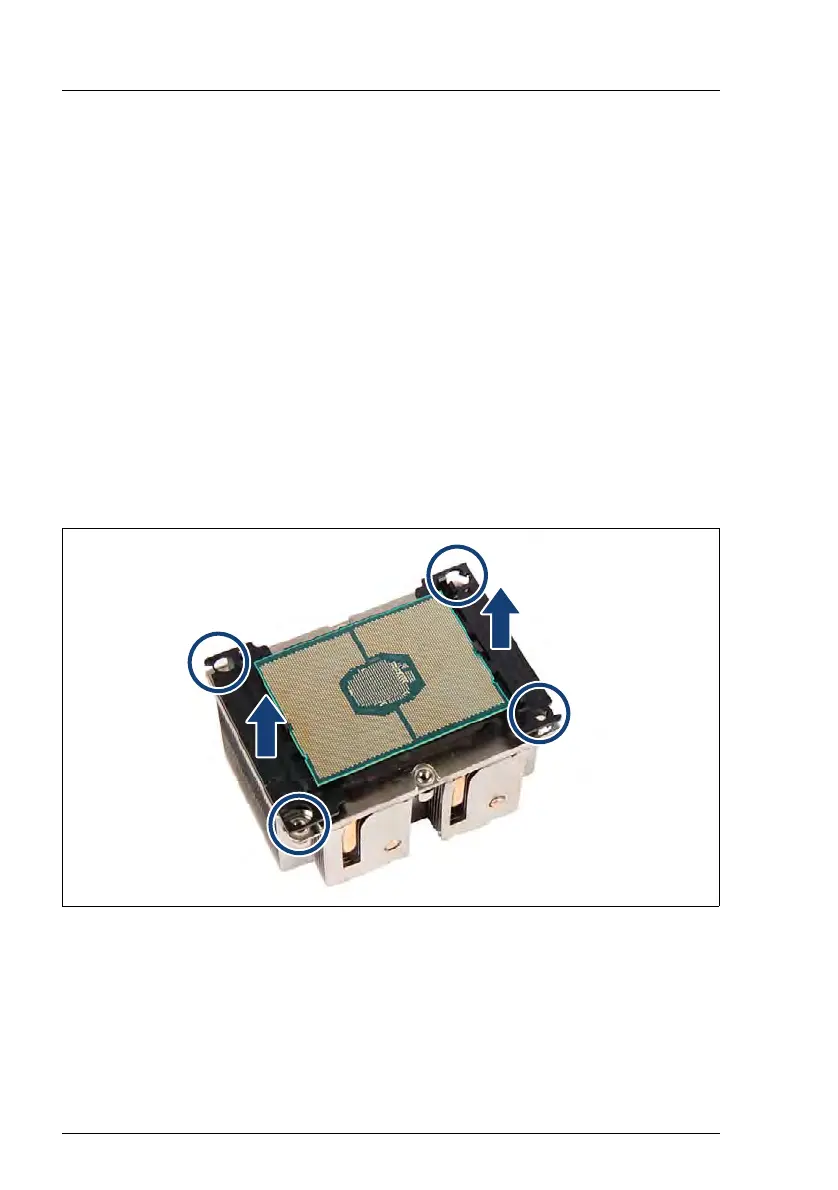

Figure 207: Removing the CPU frame
Ê Release the four hooks (see circles).
Ê Carefully twist the CPU back and forth to detach the CPU frame from the
heat sink (see arrows).
I This may be necessary due to the adhesive quality of the thermal
paste located between the heat sink and CPU.
