RX2530 M4 Upgrade and Maintenance Manual 183
Hard disk drive (HDD) / solid state drive (SSD)
7.4.12.6 Installing the SAS expander board (if applicable)

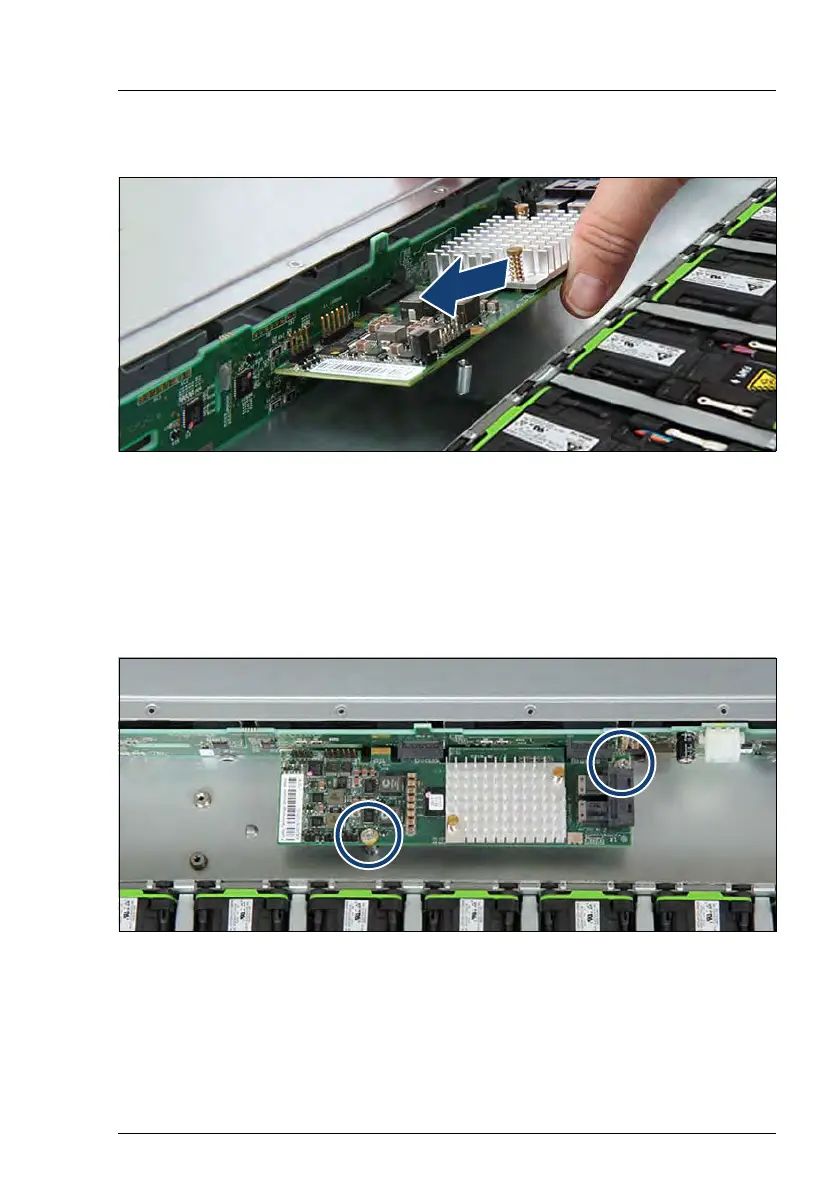

Figure 96: Installing the SAS expander board (A)
Ê Insert the SAS expander board into the two connectors of the HDD
backplane.
V CAUTION!
Lift up the SAS expander board while inserting it in order to prevent
the components to be damaged by the stand-offs of the chassis.
Figure 97: Installing the SAS expander board (B)
Ê Fasten the SAS expander board with two screws (see circles).
