222 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units
V CAUTION!
Keep the slot cover for future use. If the expansion card is removed and
not replaced with a new one, the slot cover must be reinstalled due to
cooling, to comply with applicable EMC regulations and to protect
against fire.
9.5.1.3 Installing the expansion card
Ê Please read the documentation supplied with the expansion card.
Ê Slot 2-4: If applicable, install a slot bracket to the expansion card, see
section "Installing a slot bracket" on page 204.
Ê Slot 1: If applicable, remove the slot bracket from the expansion card, see
section "Removing a slot bracket" on page 205.

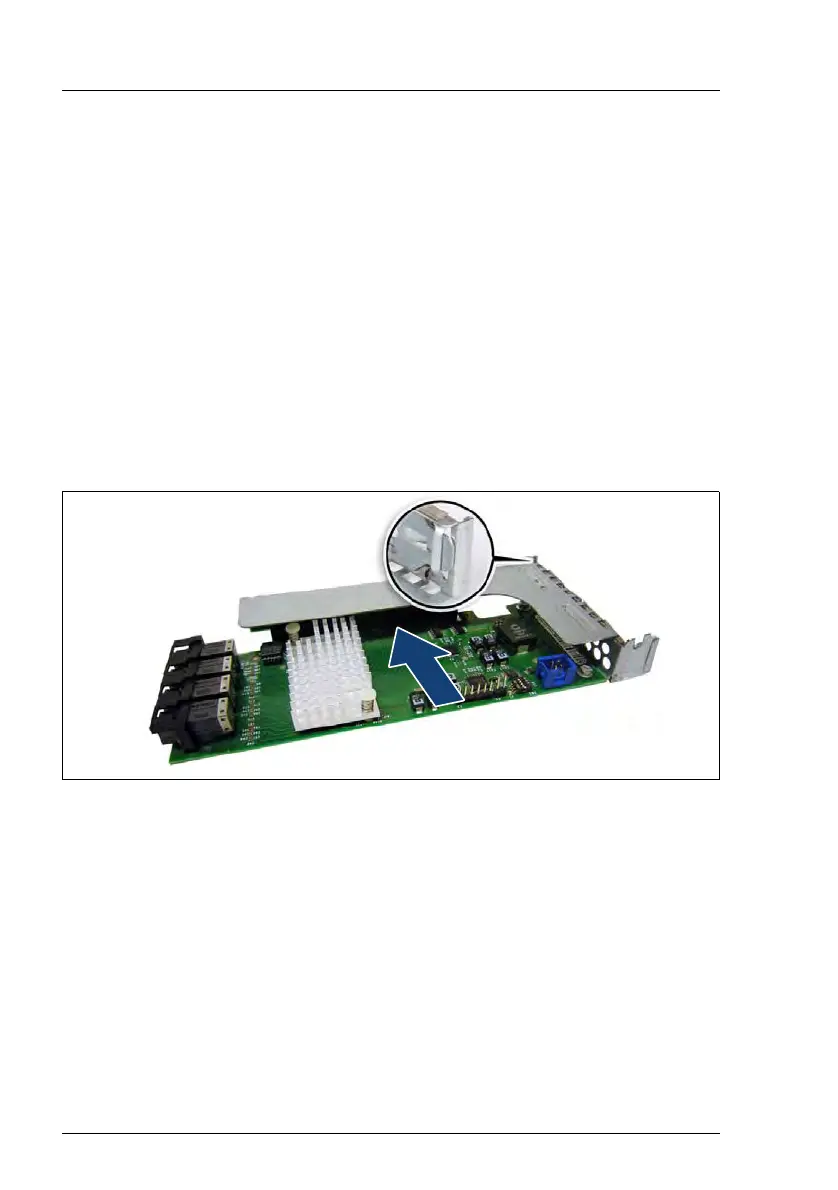

Figure 135: Installing an expansion card - example riser module 2, slot 3
Ê Slot 2-4: Carefully press the expansion card into the riser card slot, until it
clicks into place. Make sure that the lug on the slot cover clicks into place in
the corresponding bracket (see close-up).
