RX2530 M4 Upgrade and Maintenance Manual 239
Expansion cards and backup units

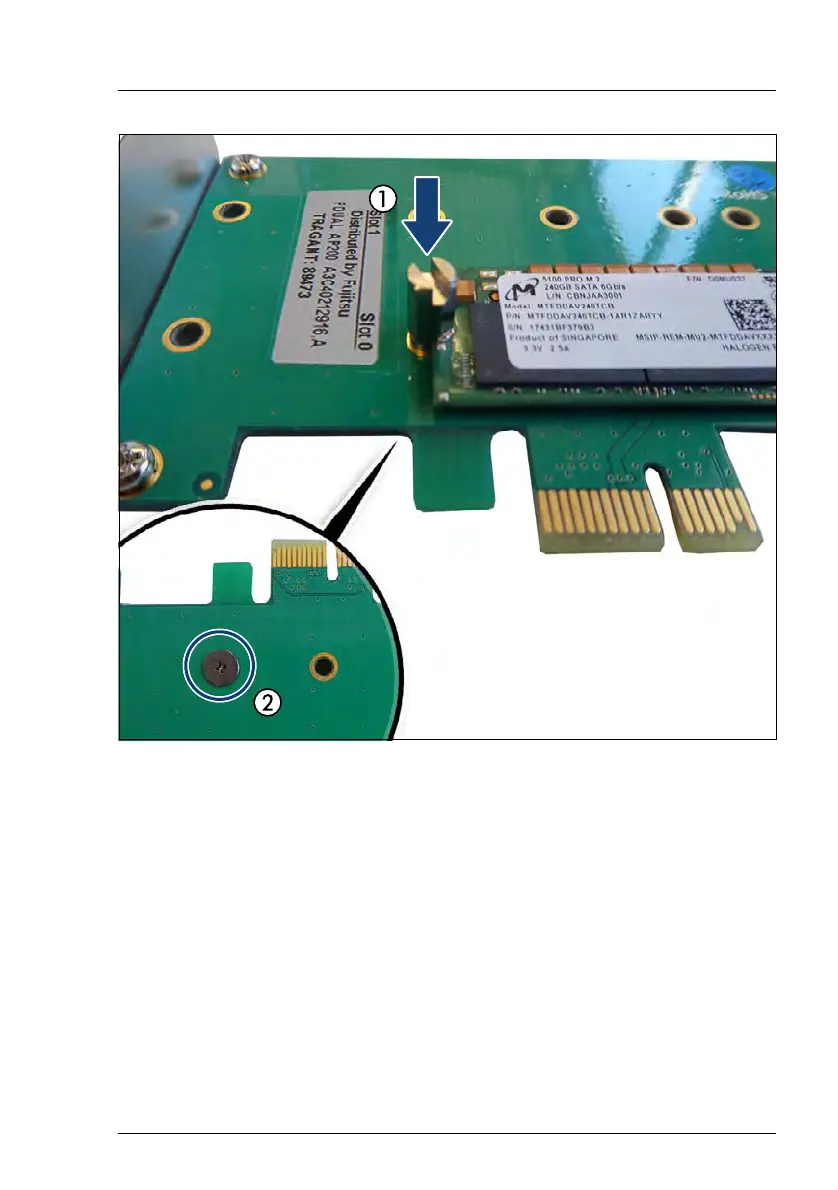

Figure 154: Fastening the M.2 SSD
Ê Push the bolt in the corresponding hole (1). Fix the bolt with two fingers.
Ê Fasten the M.2 SSD with the screw (see circle) at the bottom side (2).
Ê Install the second M.2 SSD in the same way.
9.5.4.3 Concluding steps
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 63
Ê "Switching on the server" on page 66
