240 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units
9.5.4.4 Software configuration
The M.2 SSDs are intended to be used as boot device in a RAID 1 array.
Ê Install a RAID 1 array, see description CP400i included in "Modular RAID
Controllers" user guide.
Ê Install the desired operating system, see the corresponding installation
manual of the operating system.
9.5.5 Replacing an M.2 SSD on PDUAL AP200
Note on viewing M.2 SSD in ServerView RAID Manger
The M.2 SSDs are listed under the PSAS CP400i.

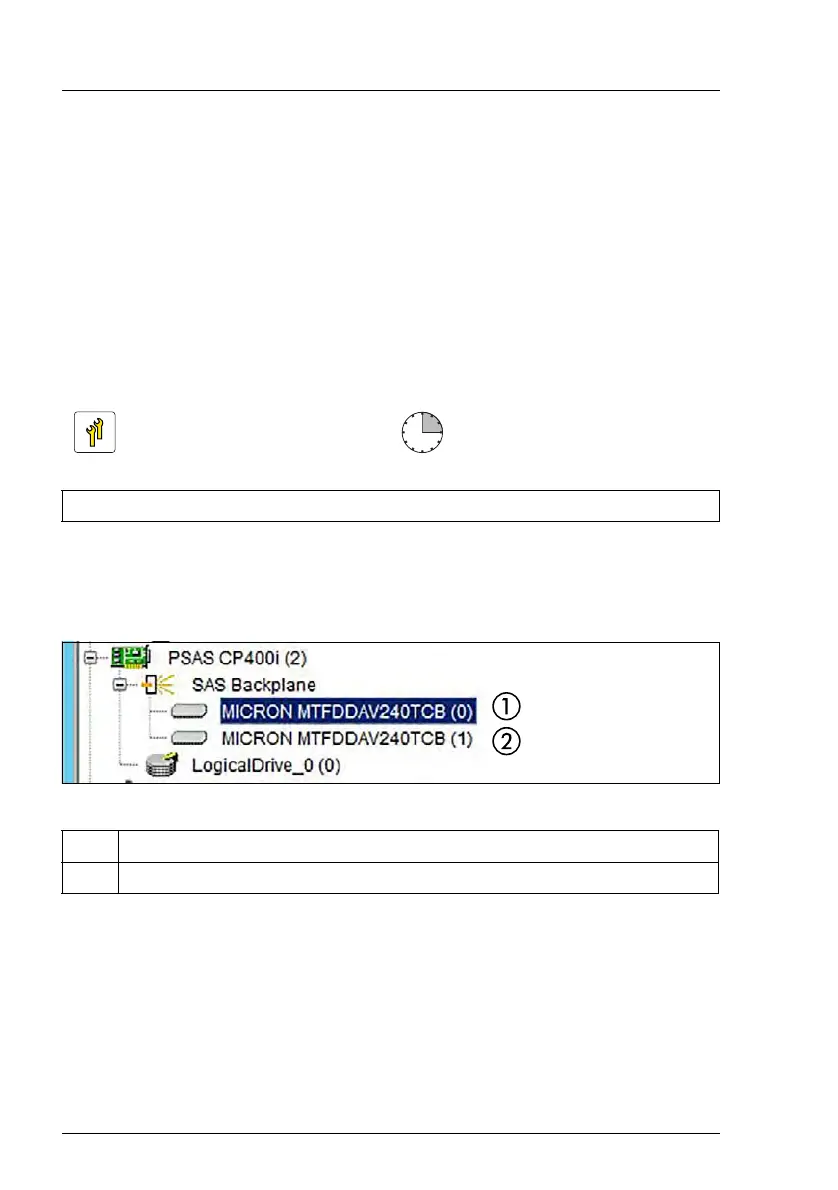

Figure 155: Example M.2 SSD in ServerView RAID Manager
9.5.5.1 Preliminary steps
Ê "Locating the defective server" on page 47
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 52
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 10 minutes
Tools: Phillips PH0 / (+) No. 0 screw driver
1 M.2 SSD in slot 0
2 M.2 SSD in slot 1
