RX2530 M4 Upgrade and Maintenance Manual 157
Hard disk drive (HDD) / solid state drive (SSD)

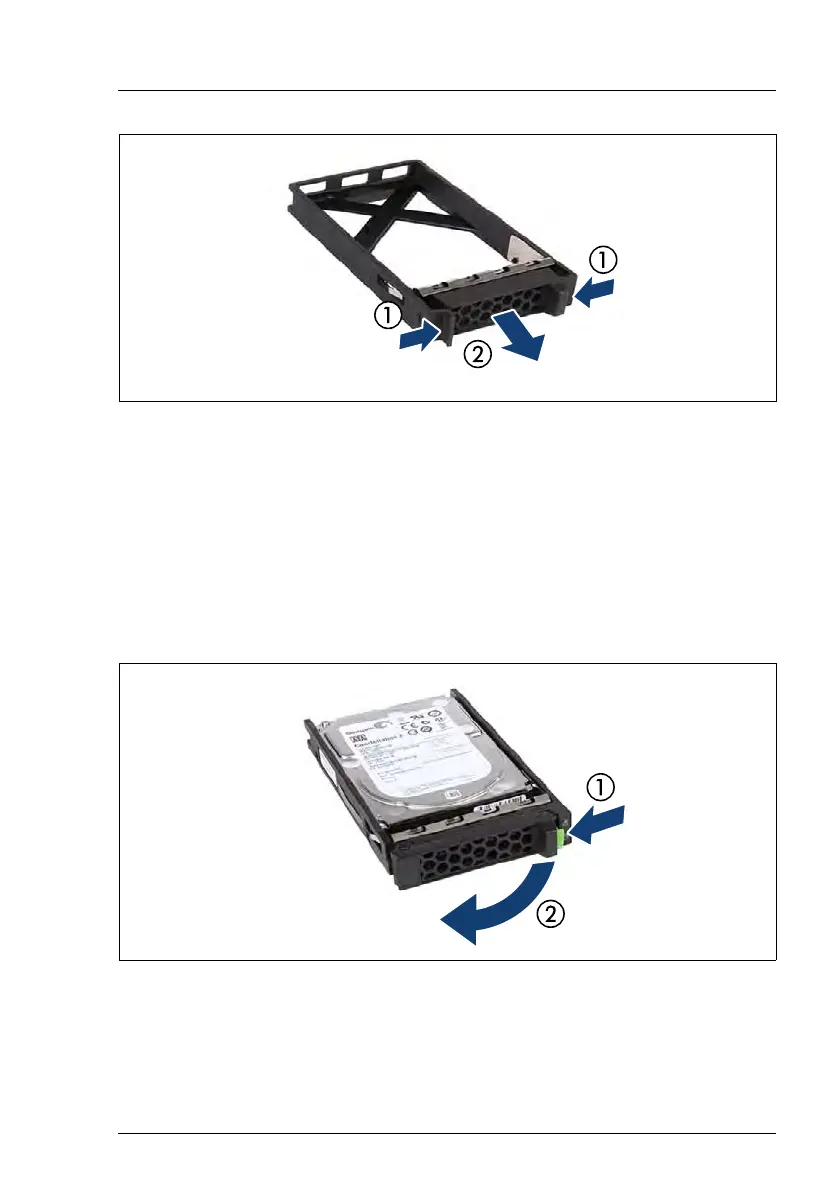

Figure 74: Removing the dummy module
Ê Press both tabs together (1) and pull the dummy module out of its bay (2).
V CAUTION!
Keep the dummy module for future use.
Always replace dummy modules into unused HDD/SSD bays to comply
with applicable EMC regulations and satisfy cooling requirements.
7.4.4.3 Installing a 2.5-inch HDD/SSD module
Figure 75: Opening the 2.5-inch HDD/SSD module locking lever
Ê Pinch the green locking clip (1) and open the locking lever (2).
