214 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units
9.4.1.3 Installing the OCP module

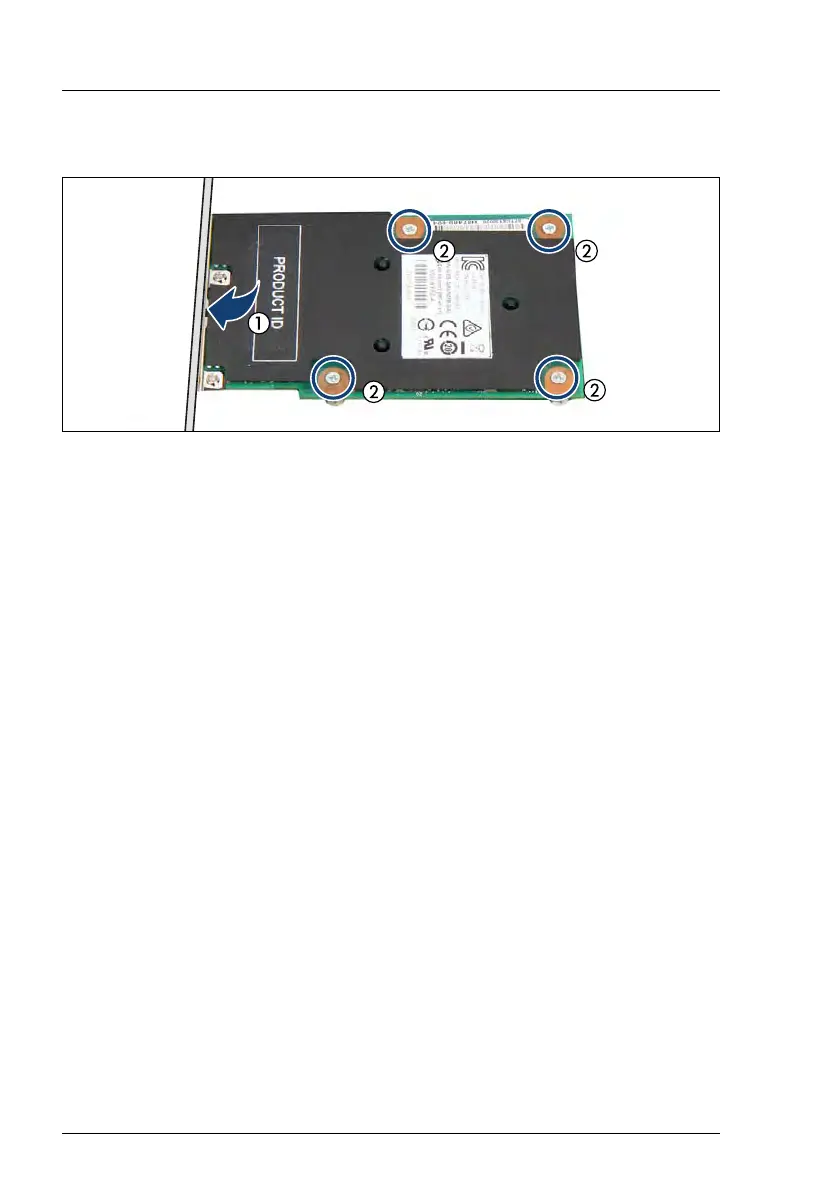

Figure 128: Installing the OCP module
Ê Install the OCP module with the bottom side above (1) on the four bolts (see
figure 125). Ensure that the connectors are positioned correctly in the rear
side.
Ê Fasten the OCP module with four screws (part of OCP kit) on the four bolts
(2).
9.4.1.4 Concluding steps
Ê Install the riser module 3, see section "Installing a riser module" on page 68.
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 63
Ê "Switching on the server" on page 66
Ê Configure the new MAC address in the operating system, if you have no
VIOM (ServerView Virtual-IO Manager) installed.
If you have VIOM installed, it is not necessary to configure the MAC address.
This is virtualized by VIOM.
Ê Inform the customer about new MAC addresses. For more information, see
section "Looking for MAC/WWN/GUID and SAS addresses" on page 100.
Ê "Updating the NIC configuration file in a Linux and VMware environment" on
page 97
Ê "Configuring LAN teaming" on page 105
