182 Upgrade and Maintenance Manual RX2530 M4
Hard disk drive (HDD) / solid state drive (SSD)
7.4.12.4 Removing the defective 10x 2.5-inch HDD backplane

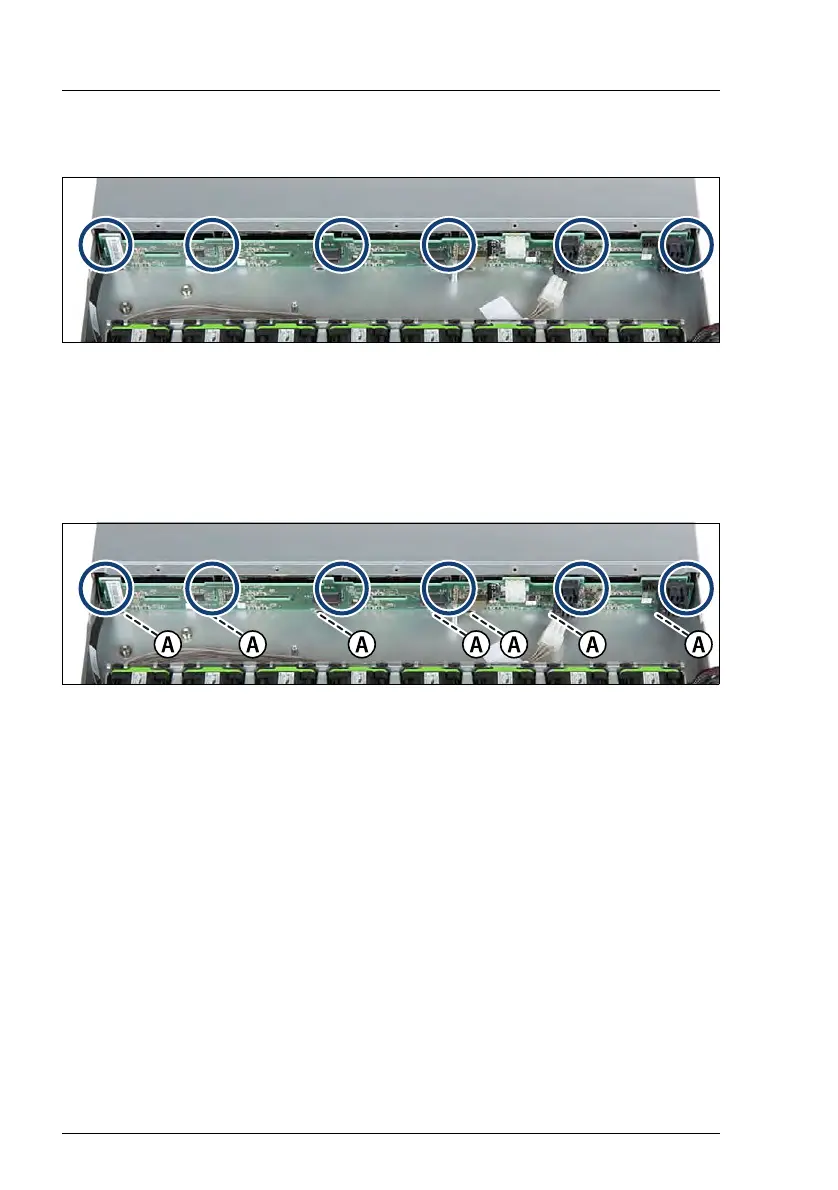

Figure 94: Removing the 10x 2.5-inch HDD backplane
Ê Pull the HDD backplane upward until the six hooks disengage (see circles).
Ê Take out the HDD backplane.
7.4.12.5 Installing the new 10x 2.5-inch HDD backplane
Figure 95: Installing the 10x 2.5-inch HDD backplane
Ê Position the HDD backplane on the six hooks (see circles).
Ê Push the HDD backplane downward. Make sure that the HDD backplane fits
into the guides (A).
