68 Upgrade and Maintenance Manual RX2530 M4
Basic hardware procedures
4.8.1 Removing a riser module

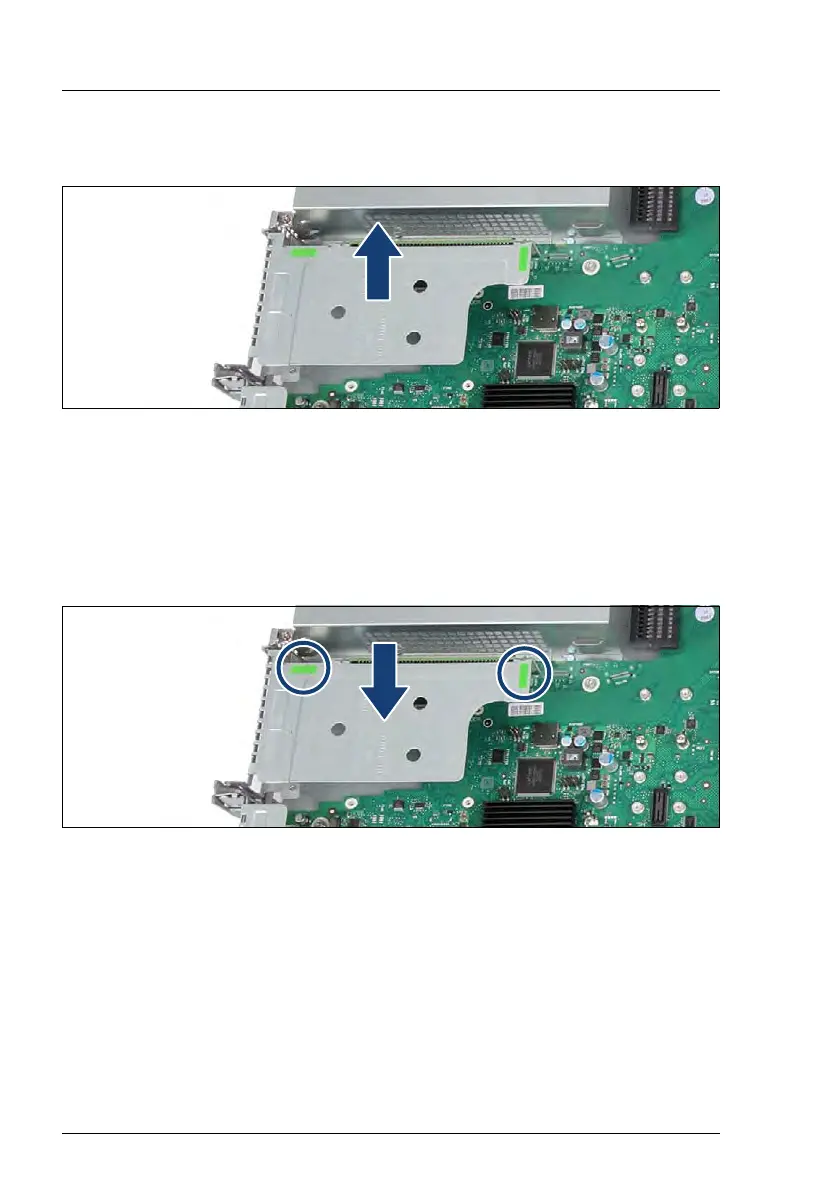

Figure 19: Removing a riser module (example riser module 3)
Ê If necessary, disconnect cables from the other components.
Ê Carefully pull out the corresponding riser module upward.
4.8.2 Installing a riser module
Figure 20: Installing a riser module (example riser module 3)
Ê Insert the riser card into the system board slot and press down the green
touch points (see circles).
Ê If necessary, connect the cables to the other components.
