Fujitsu PRIMERGY RX2530 M4

To Next Page

To Previous Page

RX2530 M4 Upgrade and Maintenance Manual 69

Basic hardware procedures

V CAUTION!

Valid for the full height riser module:

Make sure that the EMC springs make contact correctly (see close-ups).

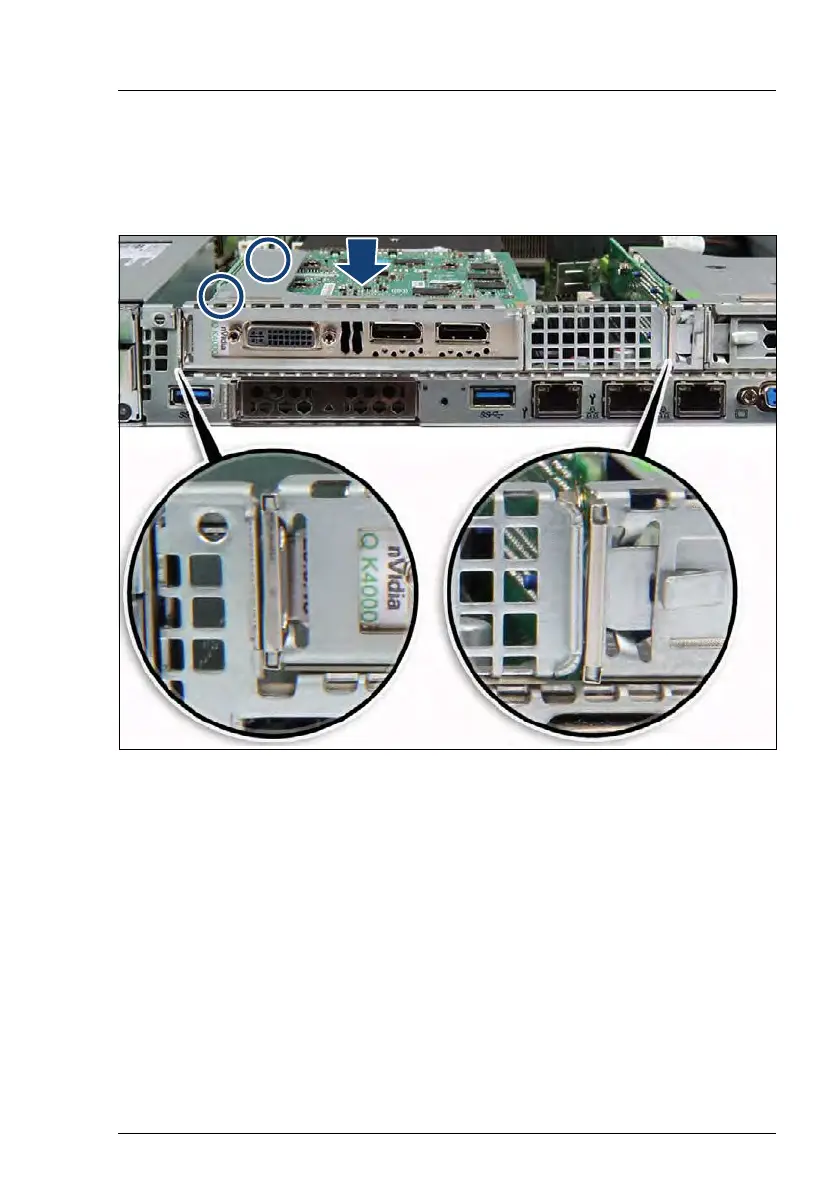

Figure 21: Installing the full height riser module
