Hard disk drive (HDD) / solid state drive (SSD)

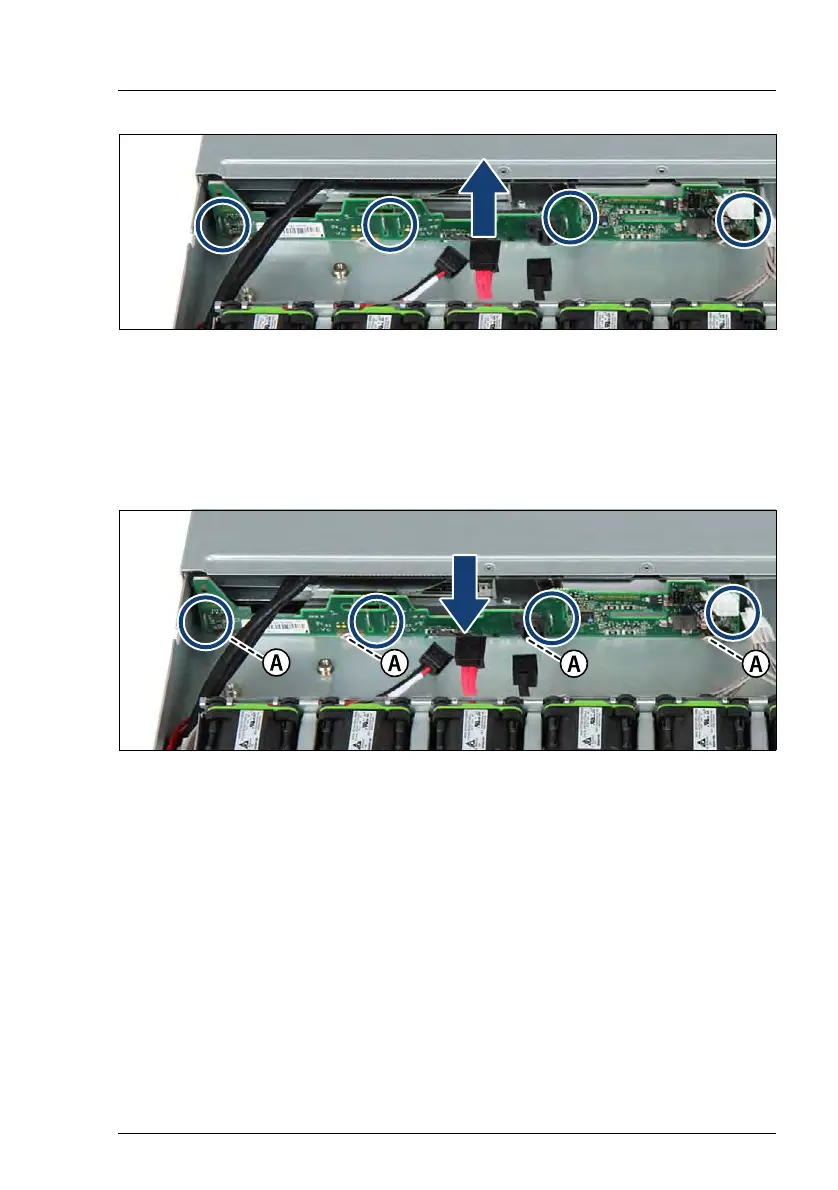

Figure 85: Removing the 4x 2.5-inch HDD backplane
Ê Pull the HDD backplane upward until the six hooks disengage (see circles).
Ê Take out the HDD backplane.
7.4.11.3 Installing the new 4x 2.5-inch HDD backplane
Figure 86: Installing the 4x 2.5-inch HDD backplane
Ê Position the HDD backplane on the six hooks (see circles).
Ê Push the HDD backplane downward. Make sure that the HDD backplane fits
into the guides (A).
V CAUTION!
Ensure that none of the cables are strained or damaged!
