312 Upgrade and Maintenance Manual RX2530 M4
12.2.2 Removing the LC device

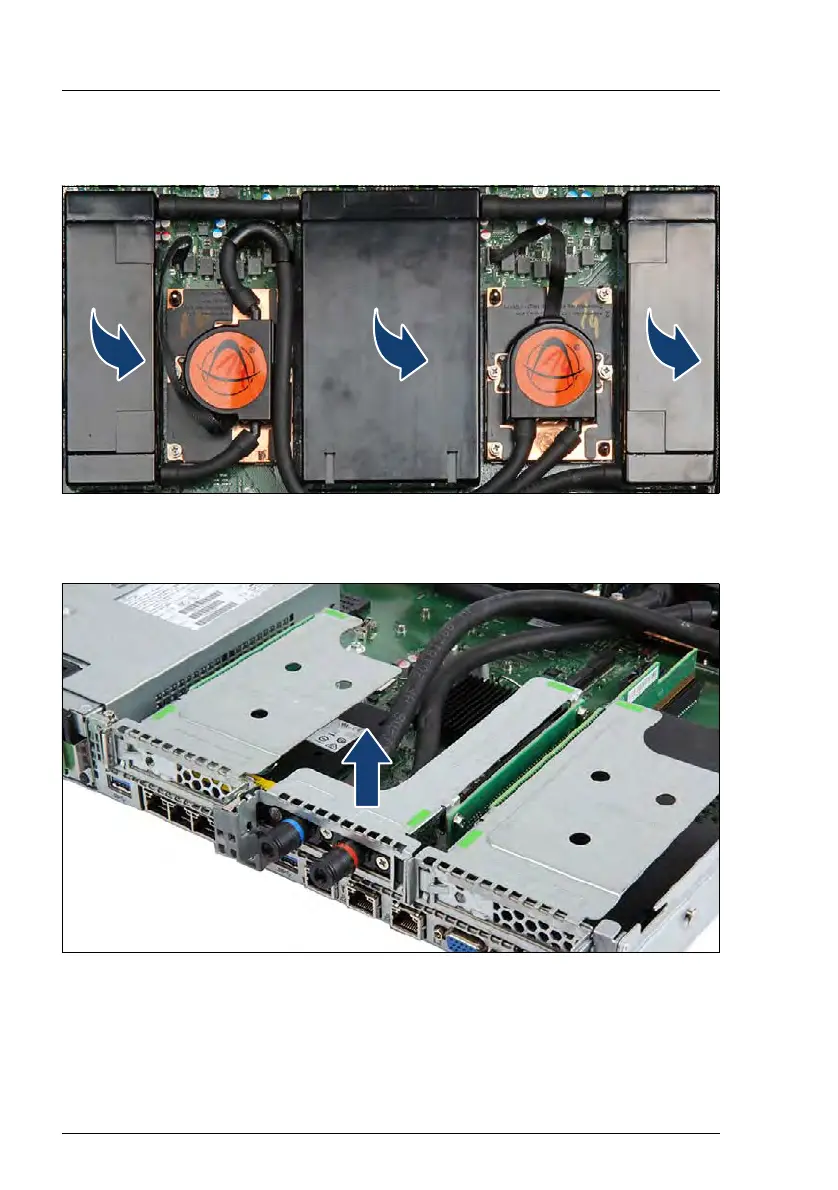

Figure 218: Removing the memory covers
Ê Pull up the three memory covers.
Figure 219: Removing the riser module 2 with the tubes
Ê Remove the riser module 2, see section "Removing a riser module" on
page 68.
