Basic hardware procedures

4.9.1 Removing the chassis foams

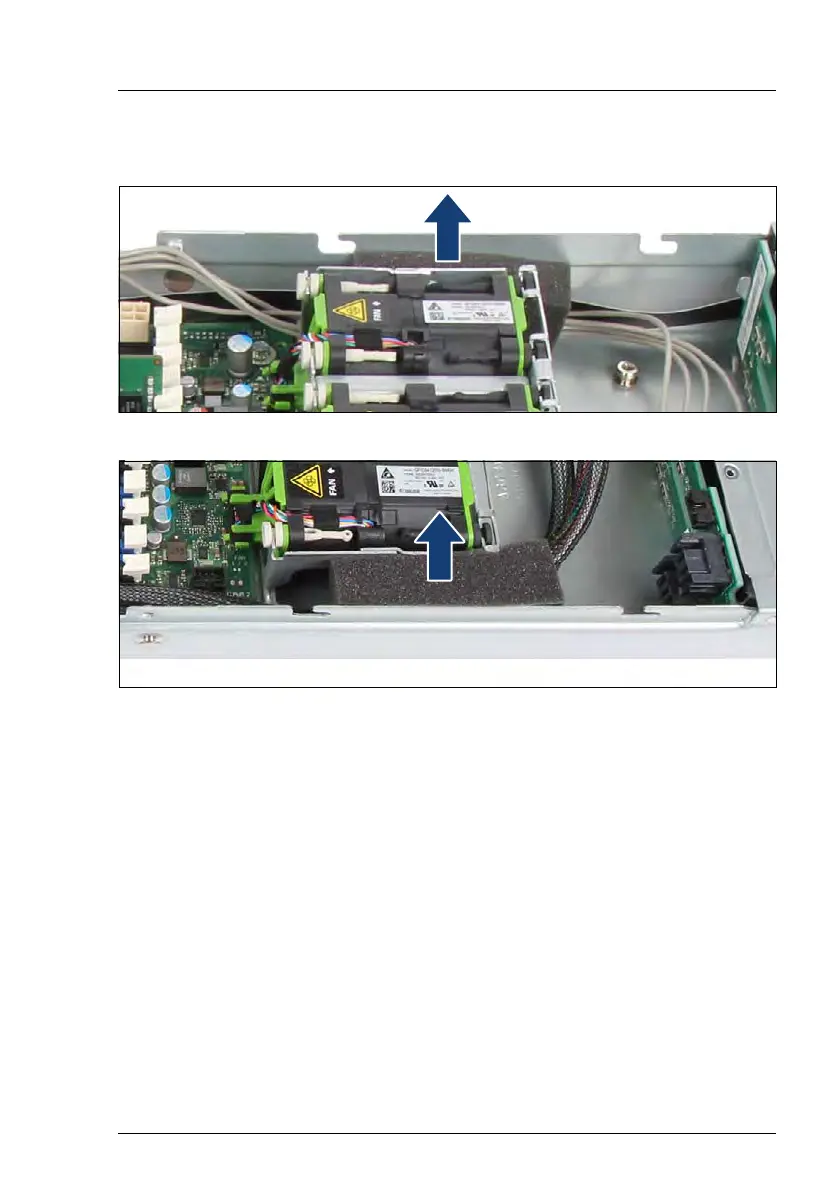

Figure 23: Removing the chassis foam 1

Figure 24: Removing the chassis foam 2

Ê Carefully pull out the chassis foams upward.
