RX2530 M4 Upgrade and Maintenance Manual 119
6.2.2.3 Removing a hot-plug PSU
Ê Remove the power cord from the dedicated PSU, see section
"Disconnecting the power cord" on page 50.

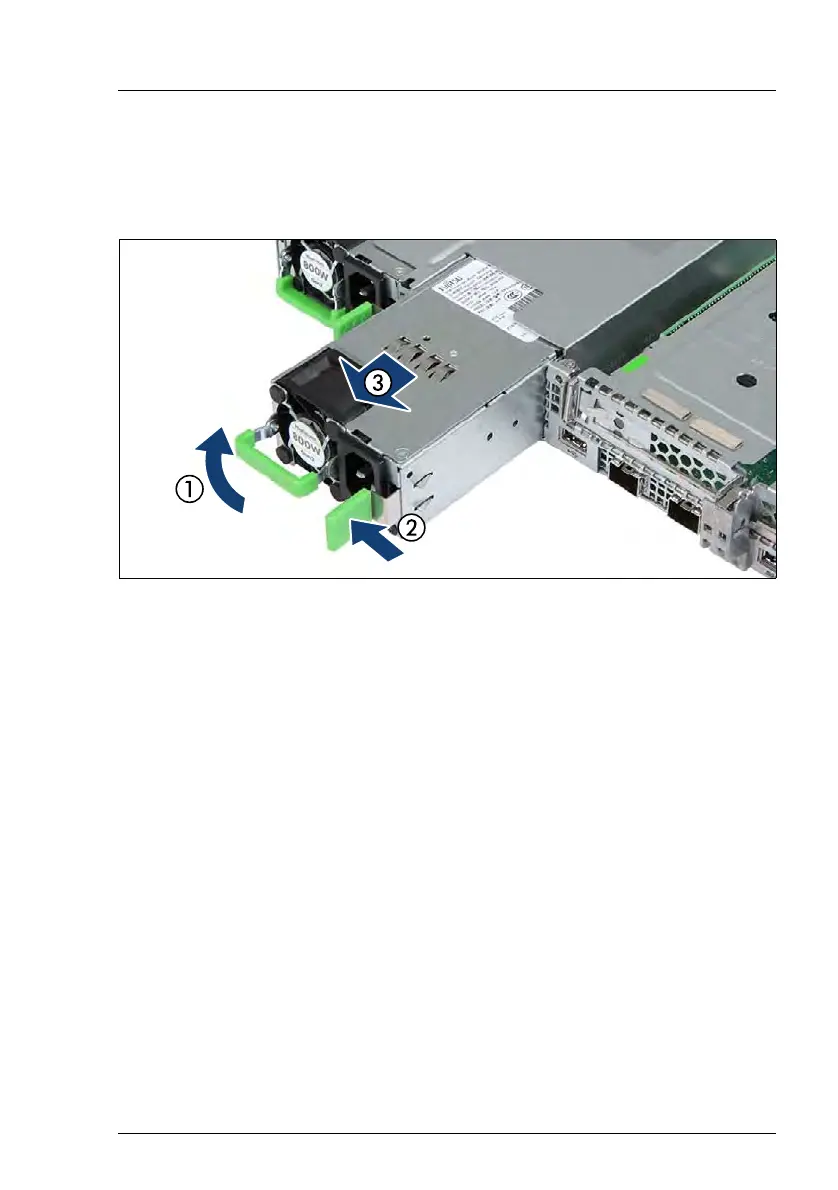

Figure 42: Unlocking and removing the PSU
Ê Push the handle of the PSU halfway upward in the direction of the arrow (1).
Ê Push the lock in direction of the arrow (2).
Ê Grip the handle and pull out the PSU in the direction of the arrow (3).
V CAUTION!
Never leave the bay for the PSU empty for more than two minutes during
operation. Otherwise, excessive temperatures could damage system
components.
