164 Upgrade and Maintenance Manual RX2530 M4
Hard disk drive (HDD) / solid state drive (SSD)
7.4.7.3 Installing a 2.5-inch PCIe SSD module

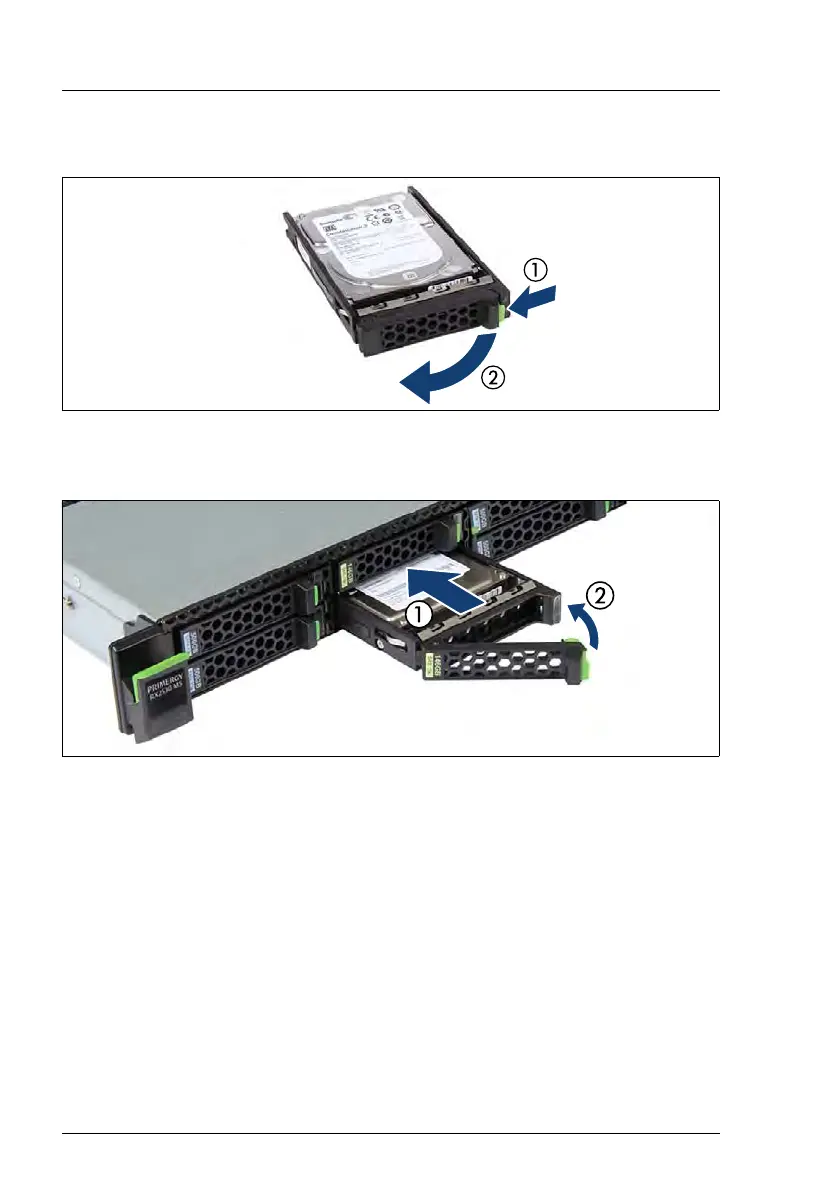

Figure 78: Opening the locking lever
Ê Pinch the green locking clips (1) and open the locking lever (2).
Figure 79: Installing the 2.5-inch PCIe SSD module
Ê Insert the PCIe SSD module into a drive bay and carefully push back as far
as it will go (1).
Ê Close the locking lever to lock the PCIe SSD module in place (2).
7.4.7.4 Concluding steps
Ê If applicable, "Switching on the server" on page 66.
Ê If applicable, rescan available devices from your operating system, see the
"NVMe User Guide".
