Hard disk drive (HDD) / solid state drive (SSD)
7.4.10.3 Installing the new 4x 2.5-inch HDD backplane

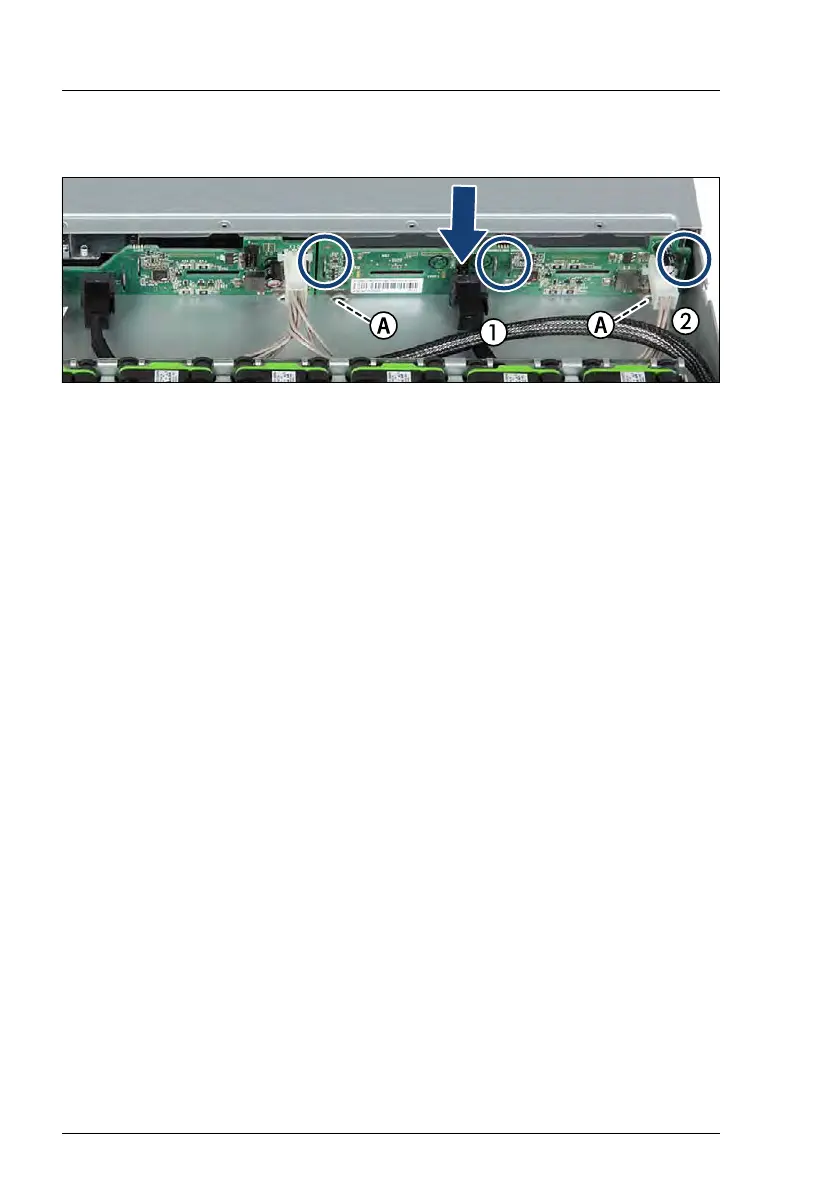

Figure 82: Installing the 4x 2.5-inch HDD backplane
Ê Position the HDD backplane on the four hooks (see circles).
Ê Push the HDD backplane downward. Make sure that the HDD backplane fits
into the guides (A).
V CAUTION!
Ensure that none of the cables are strained or damaged!
Ê Connect the following cables to the HDD backplane:
– (1) SAS cable to connector "X5" on the HDD backplane
– (2) power cable to connector "PWR (X10)" on the HDD backplane
I If applicable, connect the OOB cable to connector "SMBus" on the
HDD backplane (see figure 81).
For the cable plan, see chapter "Appendix B" on page 437.
7.4.10.4 Concluding steps
Ê Insert all HDD/SSD modules, see section "Installing a 2.5-inch HDD/SSD
module" on page 157.
I Make sure that you reinstall the HDD/SSD module in the bay it was
located before the HDD backplane replacement.
Ê Insert all dummy modules, see section "Installing a 2.5-inch HDD/SSD
dummy module" on page 160.
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 63
Ê "Switching on the server" on page 66
