Power supply unit (PSU)
Ê Push the lock spring inward to unlock the CMA stopper (see figure 39).
V CAUTION!
In case of not enough space at the under side, unlock the CMA
stopper of the server below and pull out the CMA to the rear side.
Ê Remove the CMA stopper with the mounted crossbar (see figure 40).
Ê Hold the CMA stopper, the crossbar and the CMA including cables in the one
hand.
Ê Remove the FJBU and install the dummy cover carefully.
Ê Mount the complete assembly (CMA stopper, the crossbar and the CMA)
again into the rail.
6.3.2.1 Preliminary steps
Ê No steps needed.
6.3.2.2 Removing an FJBU

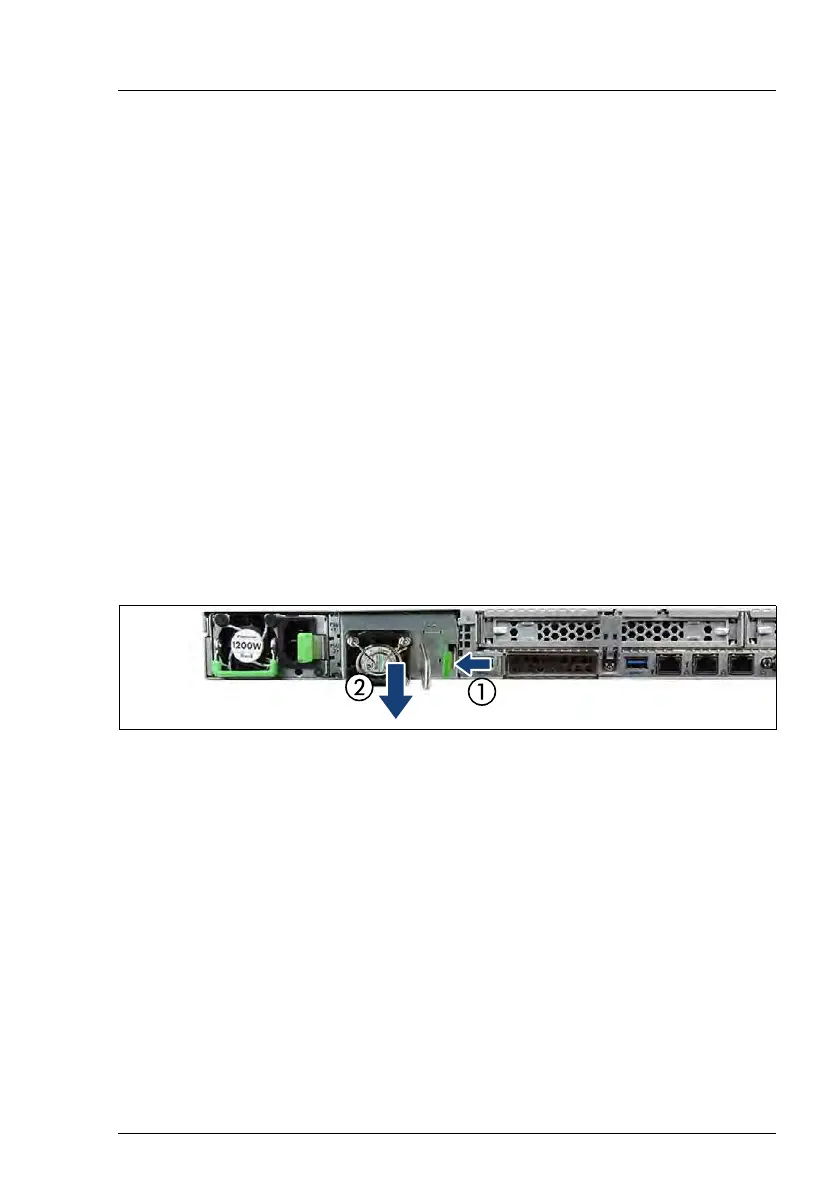

Figure 46: Removing an FJBU
Ê Press in on the green locking latch (1).
Ê While keeping the green locking latch pressed, pull the FJBU out of its bay
(2).
V CAUTION!
Never leave the bay for the FJBU empty. Install a new FJBU or install the
dummy cover.
