172 Upgrade and Maintenance Manual RX2530 M4
Hard disk drive (HDD) / solid state drive (SSD)
7.4.11.2 Removing the defective 4x 2.5-inch HDD backplane

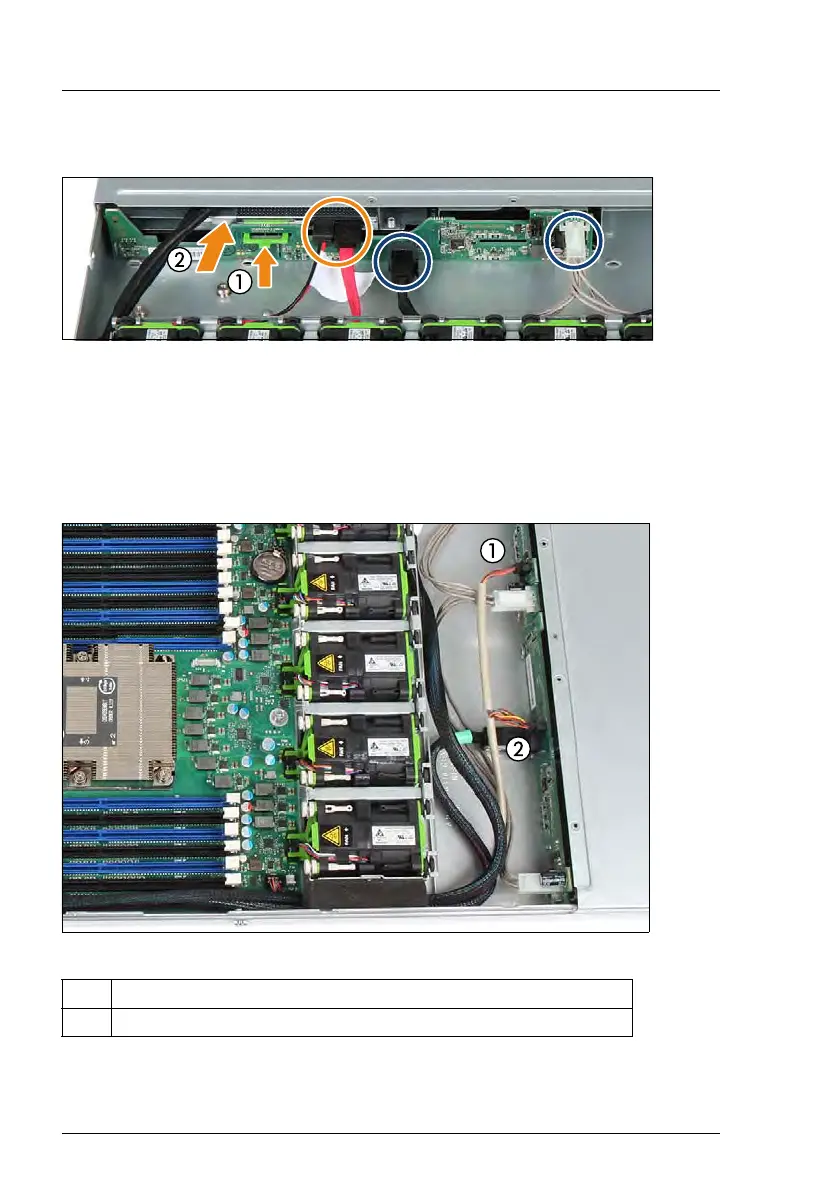

Figure 83: Releasing the ODD latch and disconnecting the cables
Ê If applicable, disconnect both cables from the ODD (see orange circle).
Ê If applicable, pull the ODD latch upward (1) until it disengages and push the
ODD somewhat in direction of the front side (2).
Ê Disconnect all cables from the HDD backplane (see blue circles).
Figure 84: Disconnecting the OOB cable - two HDD backplanes
Ê If applicable, remove the OOB cable from the HDD backplane, too.
1 Connector left side HDD backplane or free
2 Connector right side HDD backplane
