Expansion cards and backup units

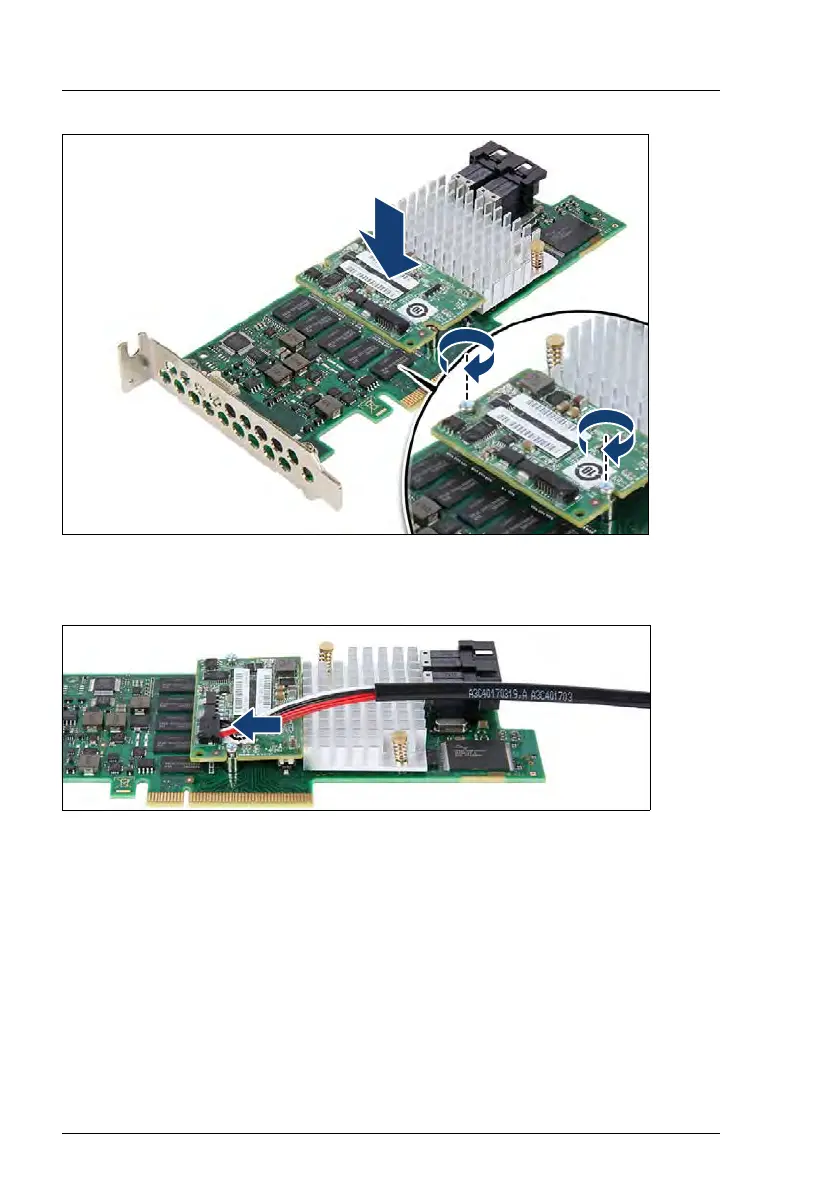

Figure 163: Installing the TFM (B)
Ê Fasten the TFM to the RAID controller with the two screws from the TFM kit.
Figure 164: Connecting the FBU cable
Ê Connect the FBU cable to the TFM.
Ê Install the expansion card, see section "Installing the expansion card" on
page 222.
9.5.7.4 Concluding steps
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 63
Ê "Switching on the server" on page 66
