72 Upgrade and Maintenance Manual RX2530 M4
Basic hardware procedures
4.9.2 Installing the chassis foams

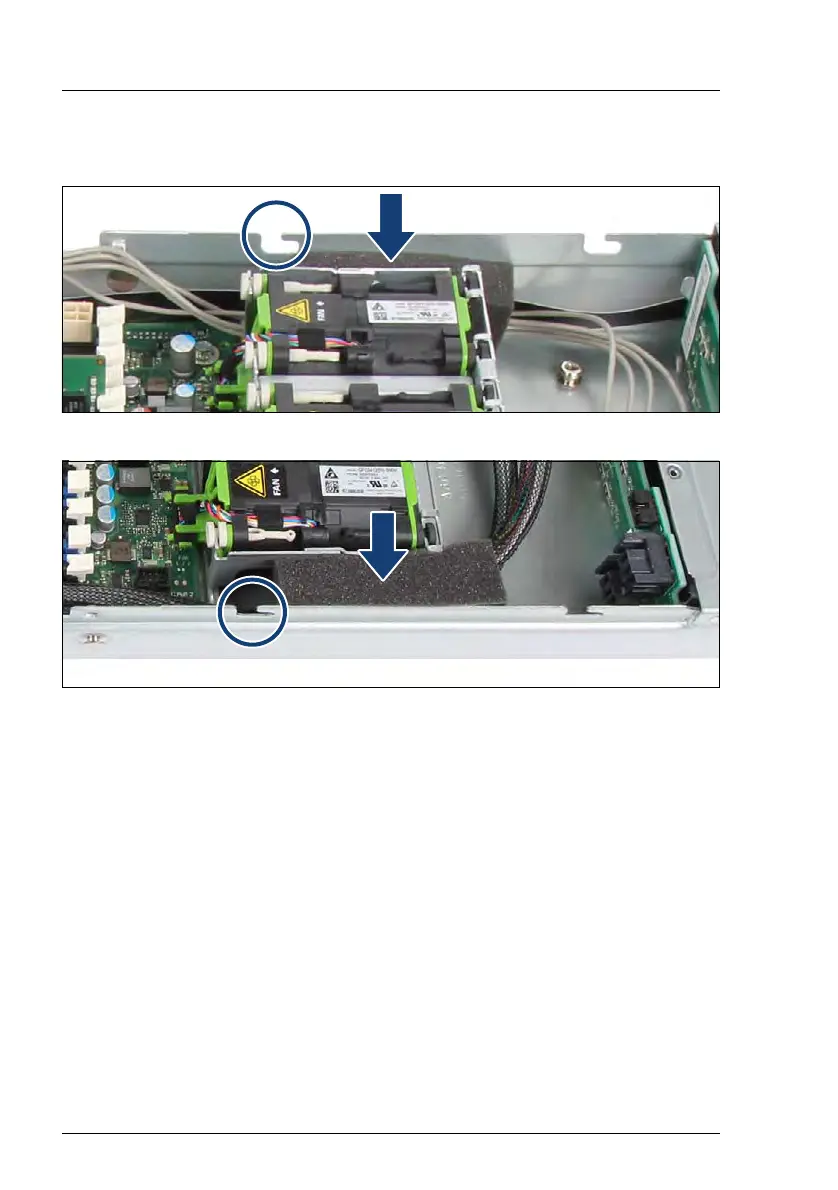

Figure 25: Installing the chassis foam 1
Figure 26: Installing the chassis foam 2
Ê Insert the chassis foams on the chassis sides. The recesses of the chassis
must be uncovered (see circle).
Ê Push the chassis foams downward above the cables. Make sure that the
chassis foams do not exceed the height of the base chassis.
