RX2530 M4 Upgrade and Maintenance Manual 215
Expansion cards and backup units
9.4.2 Removing the OCP module
9.4.2.1 Preliminary steps
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 52
Ê Remove the riser module 3, see section "Removing a riser module" on
page 68.
9.4.2.2 Removing the OCP module

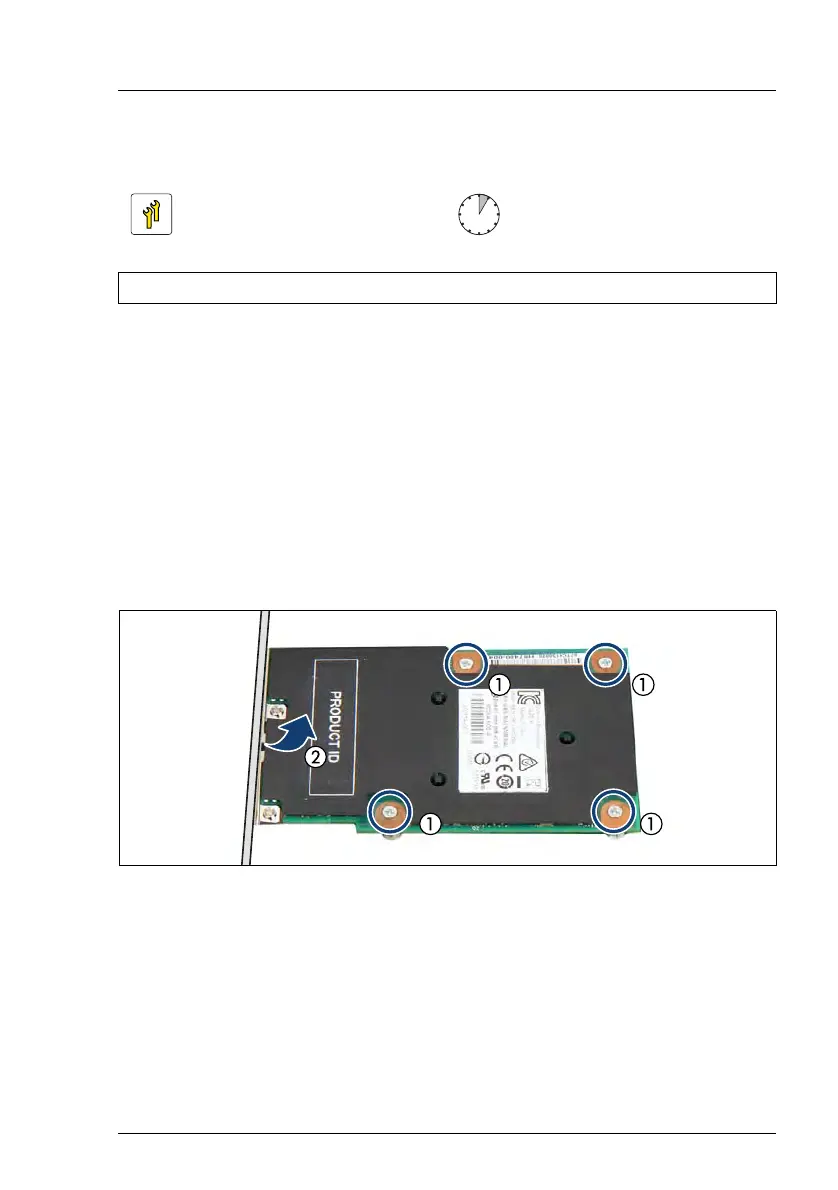

Figure 129: Removing the OCP module
Ê Remove the four screws (1).
I When replacing an OCP module: keep the screws for installing the
new OCP module.
Ê Remove the OCP module (2).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tool: – Phillips PH1 / (+) No. 1 screw driver
