236 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units
9.5.4 Installing M.2 SSDs on PDUAL AP200
The PDUAL AP200 offers two M.2 slots (Key M) for M.2 SSDs. In combination
with a PSAS CP400i controller and a RAID1 configuration, the second M.2 SSD
can be used for 1:1 mirroring of the first M.2 SSD.
9.5.4.1 Preliminary steps
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 52
9.5.4.2 Installing the M.2 SSD

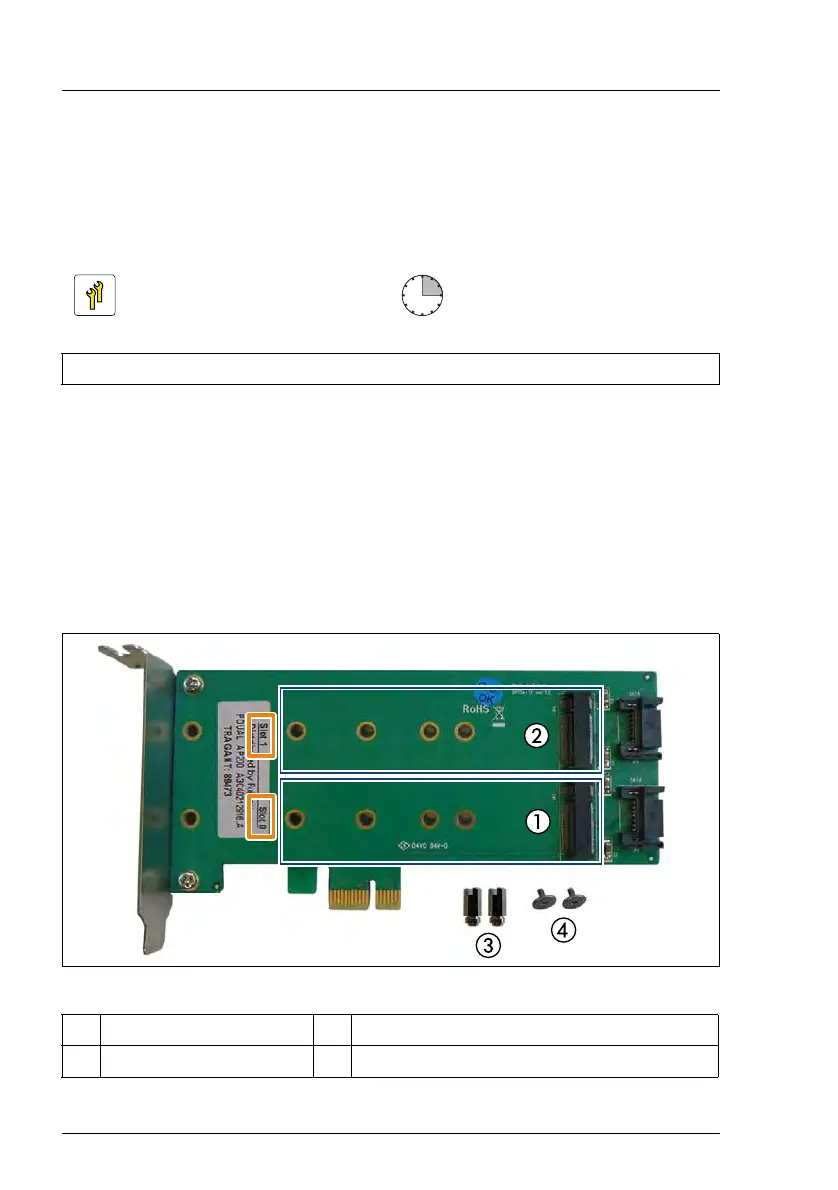

Figure 151: Slots, bolts and screws for M.2 SSDs on PRAID AP200
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 10 minutes
Tools: Phillips PH0 / (+) No. 0 screw driver
1 M.2 slot 0 3 2x bolts (included in PDUAL AP200 kit)
2 M.2 slot 1 4 2x screws (included in PDUAL AP200 kit)
