262 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units

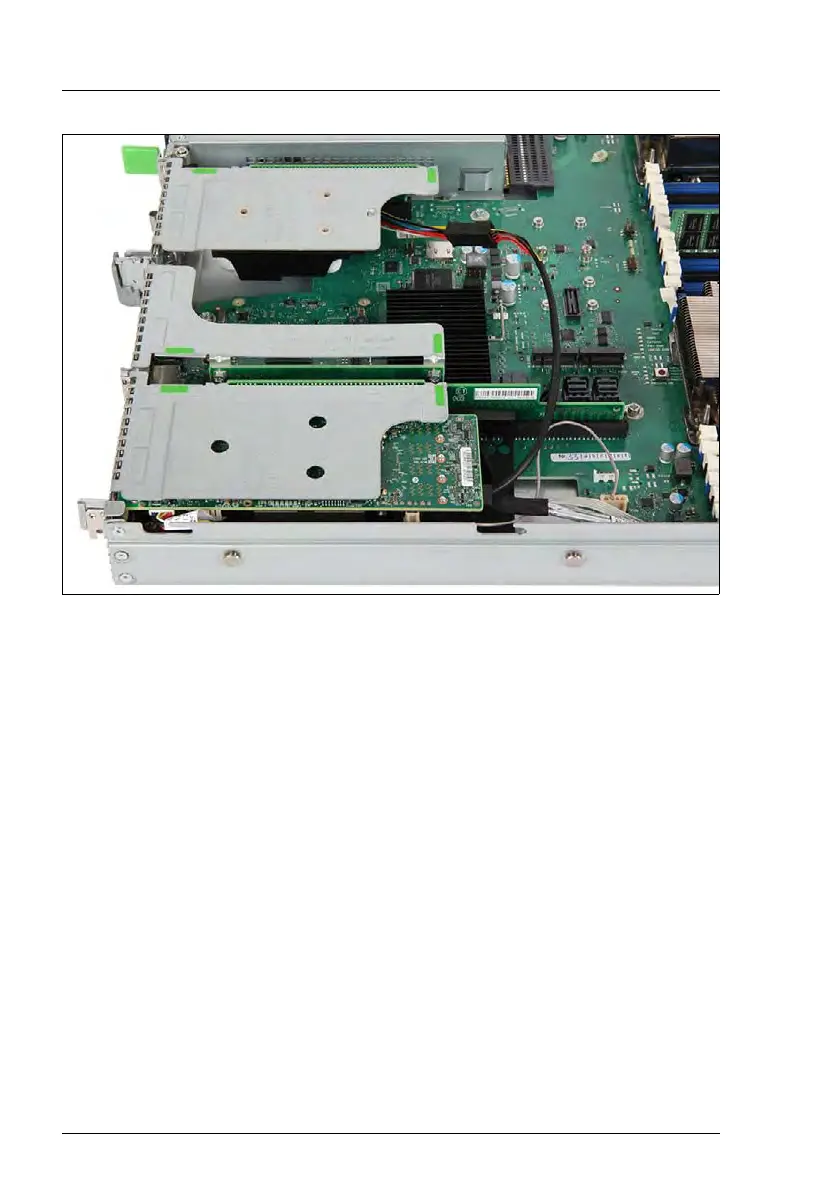

Figure 182: Routing the FBU cable
Ê Route the FBU cable as shown in the figure.
9.6.2.5 Concluding steps
Ê Install the riser module 3, see section "Handling riser modules" on page 67.
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 63
Ê "Switching on the server" on page 66
I The recalibration of the FBU starts automatically, and finishes within a
few minutes.
