198 Upgrade and Maintenance Manual RX2530 M4
8.2 Replacing a fan module
8.2.1 Preliminary steps
Ê "Locating the defective server" on page 47
Ê "Getting access to the component" on page 52
Ê "Locating the defective component" on page 48
8.2.2 Removing the defective fan module

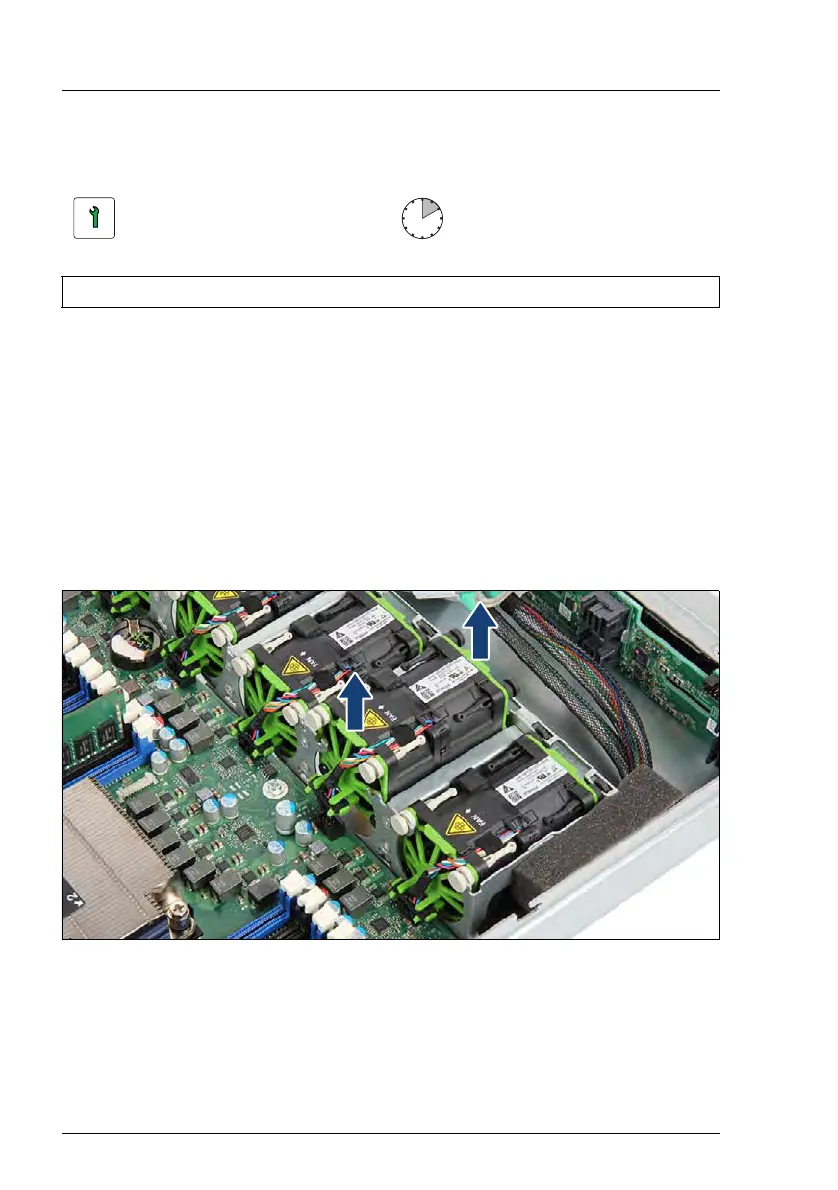

Figure 109: Removing the fan module
Ê Pull out the fan module upward using the green touch points.
Customer Replaceable Unit
(CRU)
Hardware: 10 minutes
Tools: tool-less
