146 Upgrade and Maintenance Manual RX2530 M4
Hard disk drive (HDD) / solid state drive (SSD)
7.3.5.3 Installing the new 3.5-inch HDD backplane

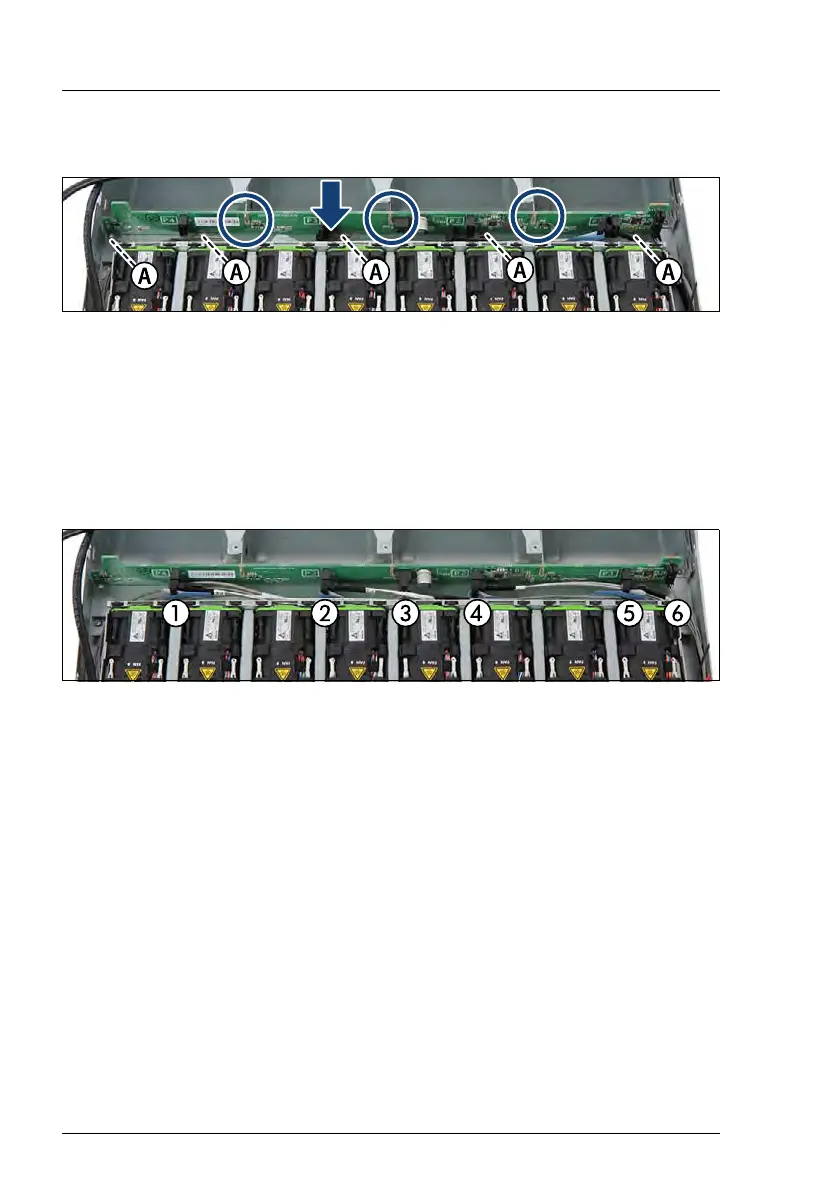

Figure 63: Installing the 3.5-inch HDD backplane
Ê Position the HDD backplane on the three hooks (see circles).
Ê Push the HDD backplane downward. Make sure that the HDD backplane fits
into the guides (A).
V CAUTION!
Ensure that none of the cables are strained or damaged!
Figure 64: Connecting the cables to the 3.5-inch HDD backplane
Ê Connect the following cables to the HDD backplane:
– SAS/SATA data cable:
(1), (2), (4), (5) to connectors "P4", "P3", "P2", "P1" according to the
length
(6) plug P6 to connector "SGPIO"
– (3) power cable to connector "X12"
I If applicable, connect the OOB cable to connector "SMBus" on the
HDD backplane (see figure 61).
For the cable plan, see chapter "Appendix B" on page 437.
