RX2530 M4 Upgrade and Maintenance Manual 199
8.2.3 Installing the new fan module

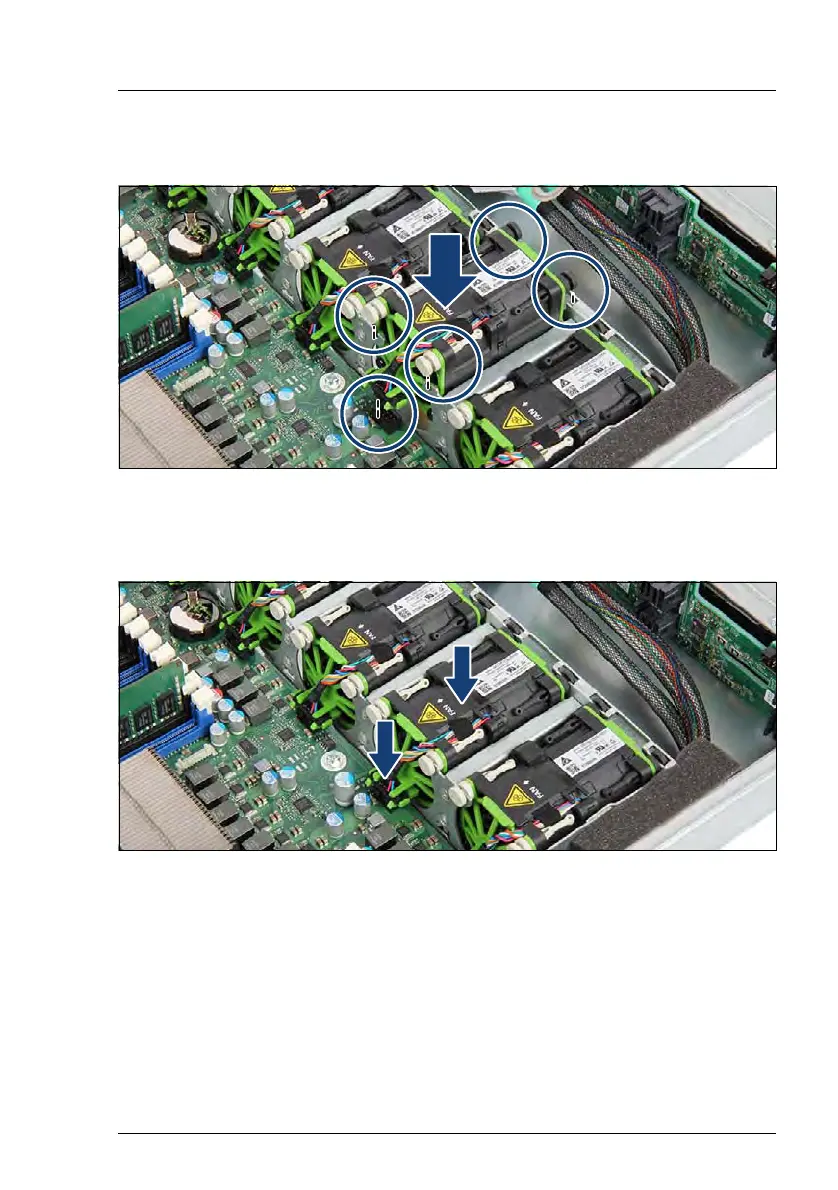

Figure 110: Installing the fan module (A)
Ê Insert the fan module in the fan bay. Notice the right position of the rubber
pins and the fan connector.
Figure 111: Installing the fan module (B)
Ê Press down the fan and the fan connector.
8.2.4 Concluding steps
Ê "Reassembling" on page 57
Ê "Performing a fan test" on page 106
