144 Upgrade and Maintenance Manual RX2530 M4
Hard disk drive (HDD) / solid state drive (SSD)
7.3.5 Replacing the 3.5-inch HDD backplane
7.3.5.1 Preliminary steps
Ê "Locating the defective server" on page 47
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 52
Ê Release all HDD modules and pull them out a few centimeters, see section
"Removing a 3.5-inch HDD module" on page 141.
V CAUTION!
The HDD modules need not to be removed completely. But if you want to
remove them nevertheless, check if all HDD modules are uniquely
identified so that you can reinsert them into their original bays.
Ê Release all dummy modules and pull them out a few centimeters, see
section "Removing a 3.5-inch HDD dummy module" on page 138.
7.3.5.2 Removing the defective 3.5-inch HDD backplane

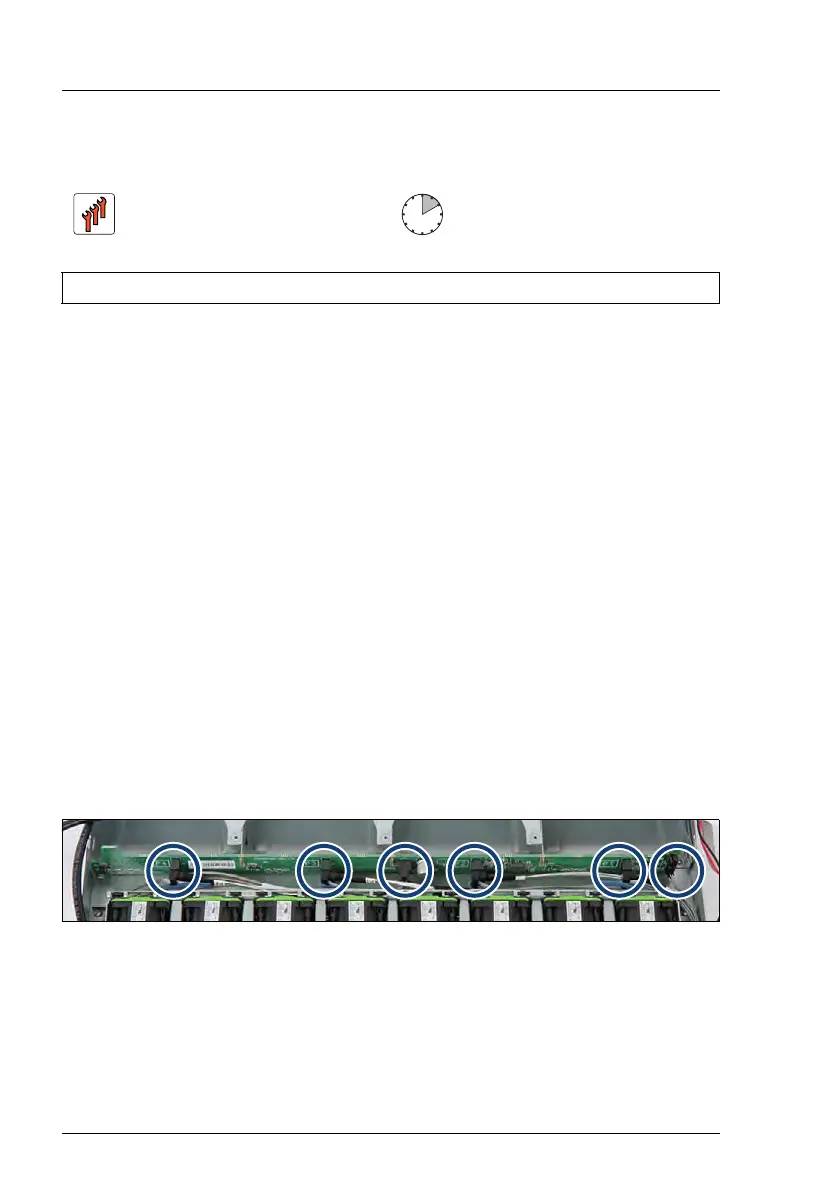

Figure 60: Disconnecting the cables
Ê Disconnect all cables from the HDD backplane (see blue circles).
Field Replaceable Unit
(FRU)
Hardware: 10 minutes
Tools: tool-less
